VJ-1628X OPERATION MANUAL Handling the printer
4.2 Media 173
3. Load the roll media.
3.5.2 Setting Roll Media
4. Set Media holder plates by sliding them from both sides of Platen.
NOTE
• Do not use Media holder plates for the media whose thickness is 400 µm (0.4mm) or thicker.
The media holder plate may interfere with Print head.

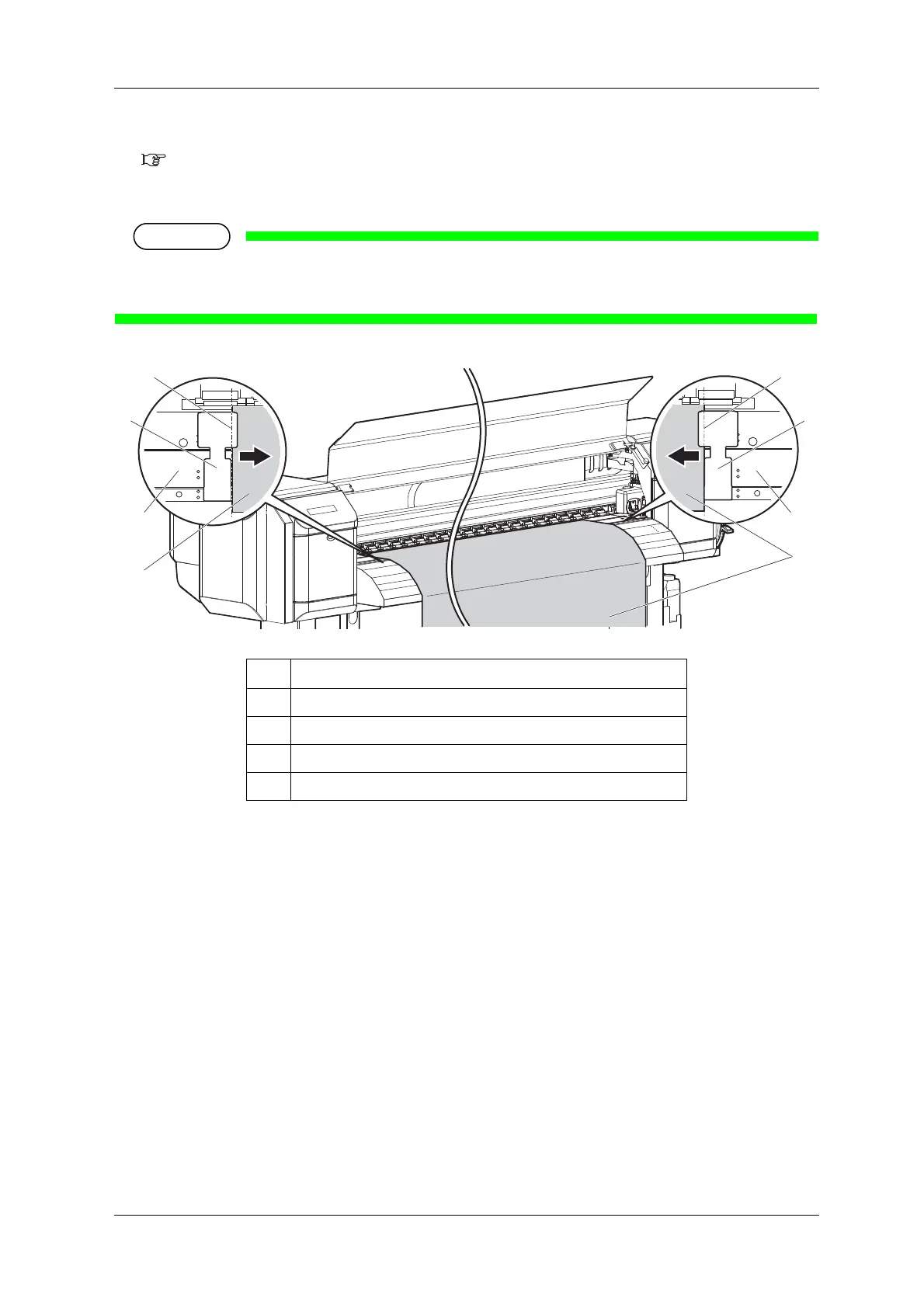

No. Name
1 Roll media
2 Media holder plate
3 Media loading position
4 Platen
1
4
2
3
1
4
3
2
