Suspension and wheels
F
- 26 -

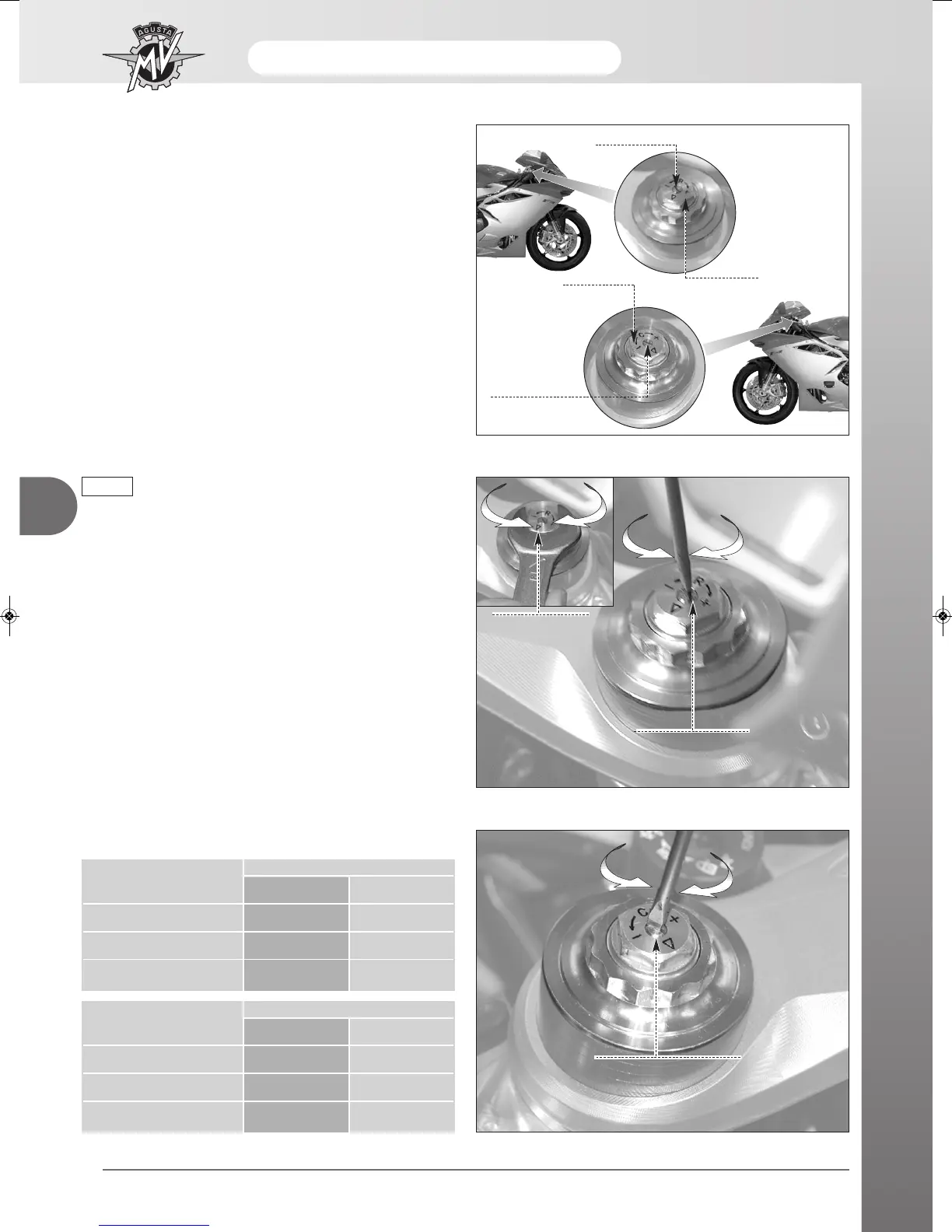

Front suspension adjustment
(F4 S - FT - R - F4 MY13)
Refer to values contained in the table to adjust front
suspension.
Rebound damper
Rebound damper
Spring preload
Compression damper
Spring preload
Compression damper
Adjustments contained in the table must
be carried out from initial reference posi-
tions:
- Spring preload: Turn counter-clockwi-
se to end stroke.
- Rebound damping: Turn clockwise to
end stroke, then turn counter-clockwise
until you hear the first click.
- Compression damping: Turn clockwi-
se to end stroke, then turn counter-
clockwise until you hear the first click.
Spring preload
NOTE
Type of set-up
On road On race track
Spring preload 2 turns 5 turns
Rebound damping 16 clicks 4 clicks
Compression damping 14 clicks 2 clicks
F4 S - F4 FT -
F4 R MY12 - F4 MY13
Type of set-up
On road On race track
Spring preload 3 turns 3 turns
Rebound damping 14 clicks 11 clicks
Compression damping 13 clicks 11 clicks
F4 R MY13
