Suspension and wheels
F
- 51 -

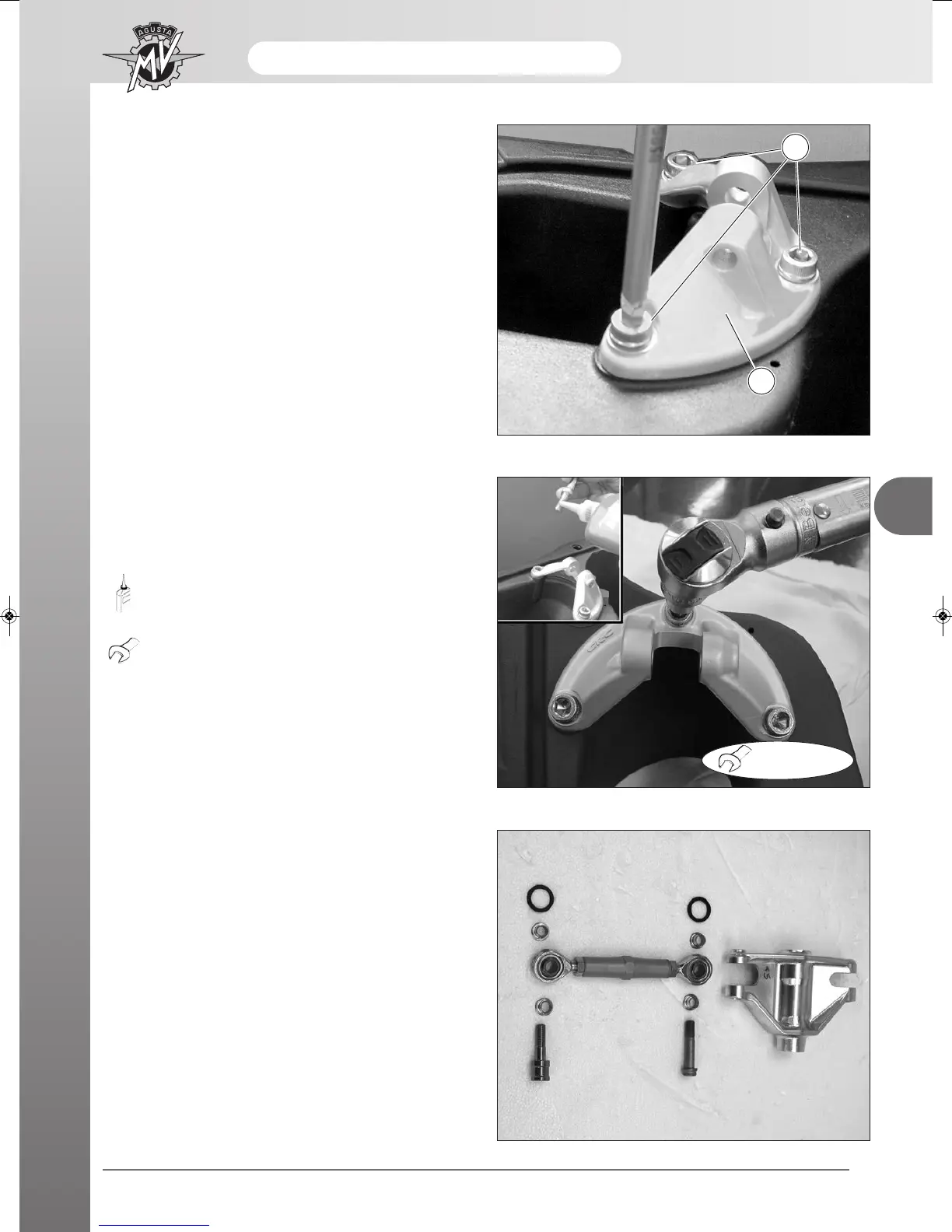

When reassembling, it is necessary to apply special
product to the three screws and lightly screw them in.
Tighten the central screw first and then the other two to
the prescribed torque pressure.
Special product: Loctite 243
Torque pressure: 40 ÷ 44 N·m
40÷44 N•m
Rear shock absorber support plate removal
Remove the three screw (1) indicated in the figure and
remove the support plate (2).
2
Rocker arm assembly
Replace the rocker unit components in the sequence
shown in the figure.
Pay attention to position both plastic spacers on the left
side of the motorcycle.
1
