Suspension and wheels
F
- 52 -

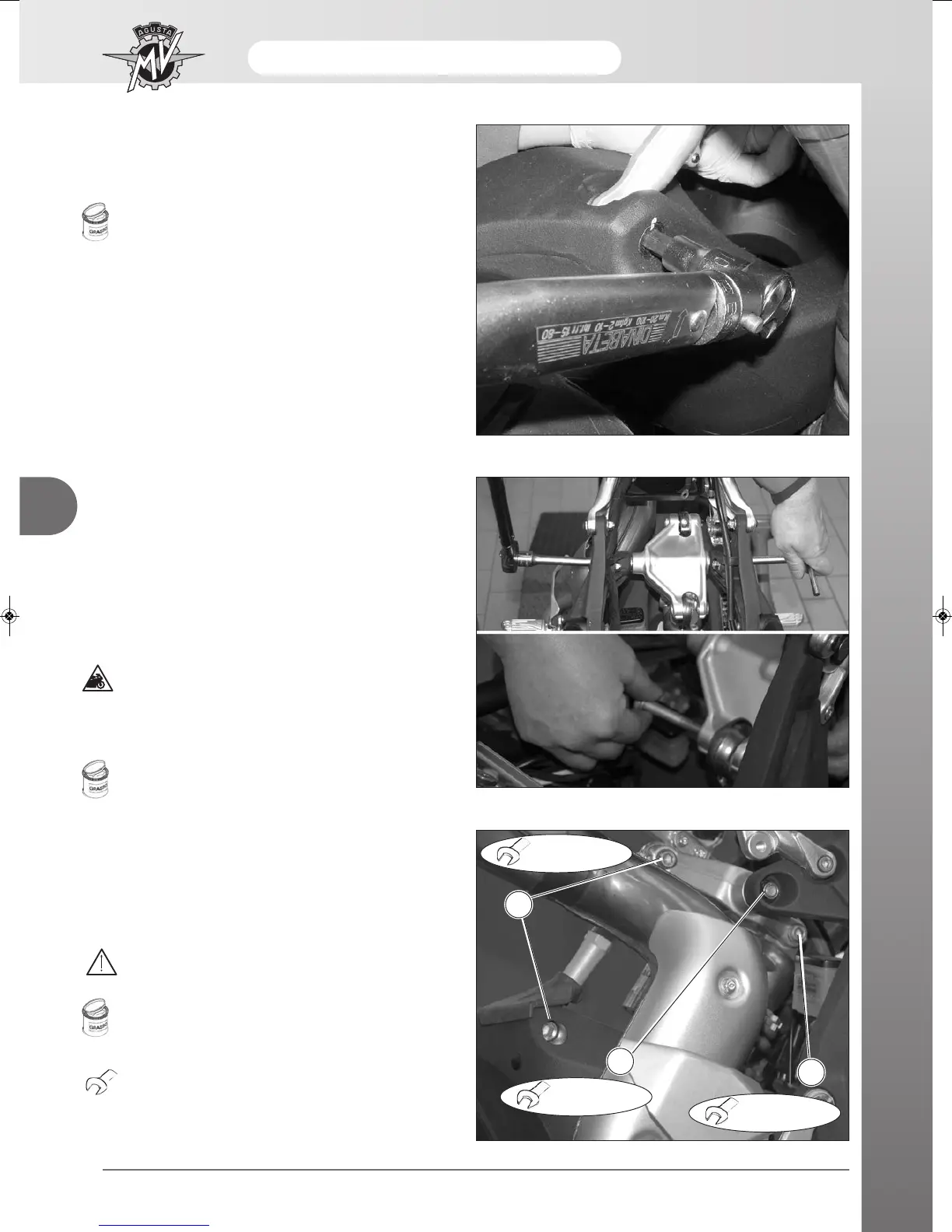

Rear shock absorber assembly
Accurately clean all parts. Grease the screws with Agip
Grease 30 before reassembly.
Insert the shock absorber from above and lightly screw
in the lower screw of the shock absorber.
Centralise the compensator assembly and replace the
pin. Screw on the nut of the pin without tightening it.
Insert the shock absorber into the compensator
assembly and lightly screw in the screw.
Lower the motorcycle to the ground, remove
the lift and safety straps.
This operation is necessary to recover the
play between the shock absorber/compen-
sator assembly/mono-arm fork.
Recommended grease: Agip Grease 30
Tighten up the whole assembly:
Tighten the screws of the connecting rod (1).
Tighten the lower and upper screw of the shock absorber
(2).
Tighten the screw of the compensator assembly (3).
Grease only the screw thread.
Recommended grease: Agip Grease 30
Connecting rod torque pressure
40 ÷ 44 N·m
Shock absorber torque pressure
40 ÷ 44 N·m
Compensator assembly torque pressure
45 ÷ 50 N·m
40÷44 N•m
45÷50 N•m
40÷44 N•m
2
3
After having cleaned and greased the seat of the spe-
cial screw situated on the mono-arm fork.
Screw in the screw without tightening it.
Recommended grease: Agip Grease 30
1
