Suspension and wheels
F
- 53 -

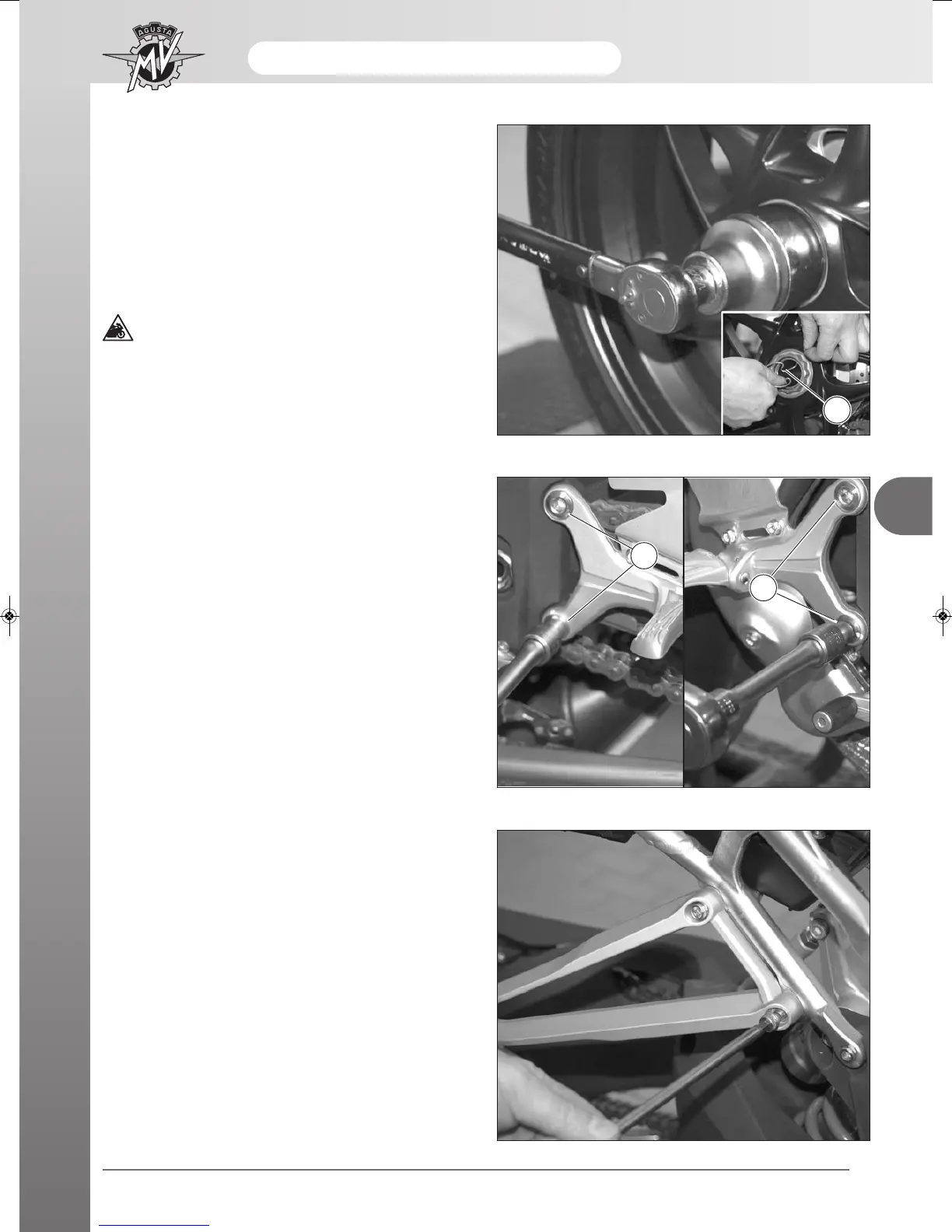

SWINGARM REMOVAL AND OVERHAUL
Remove the shock absorber and the con-rod of the
rear suspension as described in the previous pages.
Rear wheel removal
Remove the rubber and the safety spring clip (1) and
unscrew the screw ring of the wheel.
Attention! The screw ring has a left-handed
thread.
Footrest removal
Unscrew the two screws (1) of both footrest supports
and remove them.
1
1
Right passenger footrest removal
Remove the right passenger footrest by unscrewing
the two relative screws.
1
