10 Maintenance and repairs EFA-200/-300
10-2

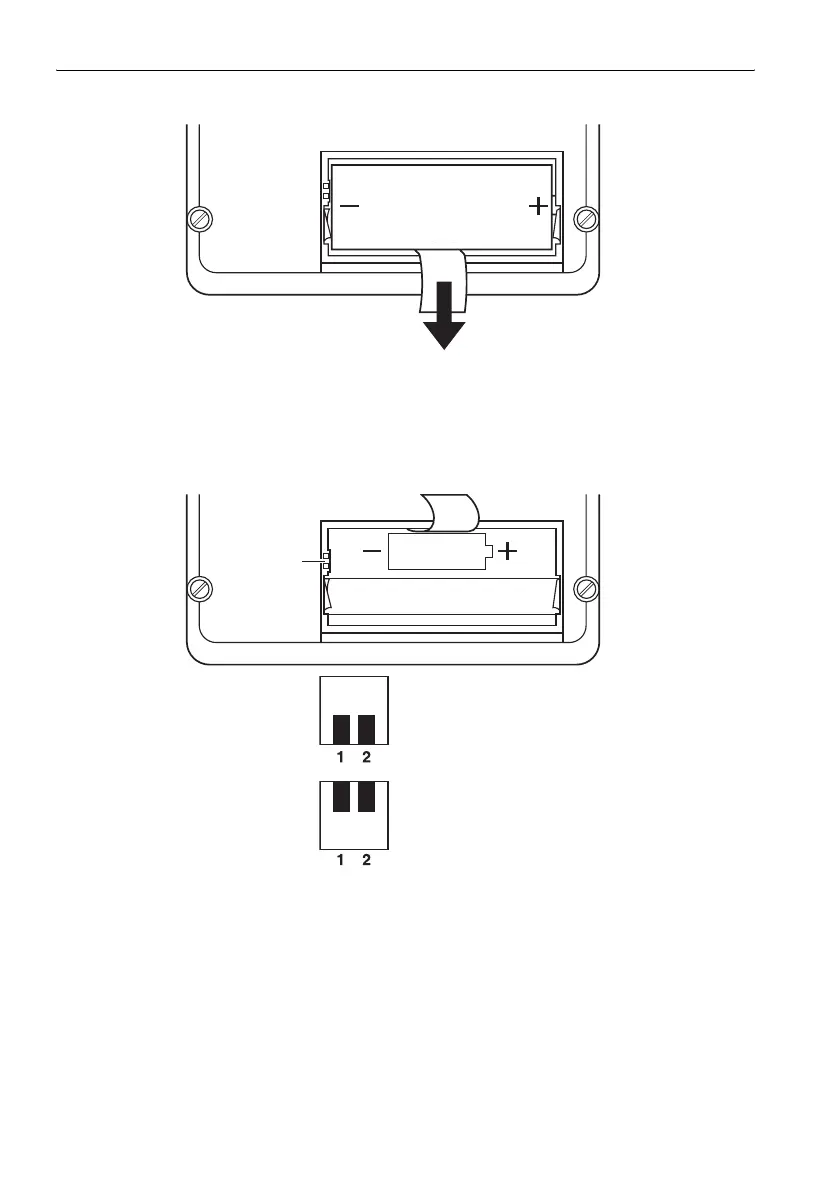

Figure 10-2 Removing the batteries
4. Check the position of the switch in the battery compartment:
Switch -> Base of battery compartment: Use rechargeable batteries
Switch -> Top of battery compartment: Use dry cells
Figure 10-3 Checking the battery compartment switch settings
5. Place the new batteries into the compartment in such a way that the cloth
tape is pulled back into the instrument.
6. Replace and close the battery compartment lid.
The instrument is once more ready for use.
To remove batteries:
Pull tape
Correct switch positions
Rechargeable batteries
Alkaline batteries
Switch
location
