6 Operating modes EFA-200/-300
6-24
6.3.7.4 Normalized display
In this display mode, the selected limit curve is computed to appear as a
straight line in the display, i.e. the 0 dB line. The actual measured values are
recomputed in the same manner and the values are normalized. This lets
you directly read off values with respect to the limit. If a value hits the 0 dB
line, then it has violated the limit by the given amount.

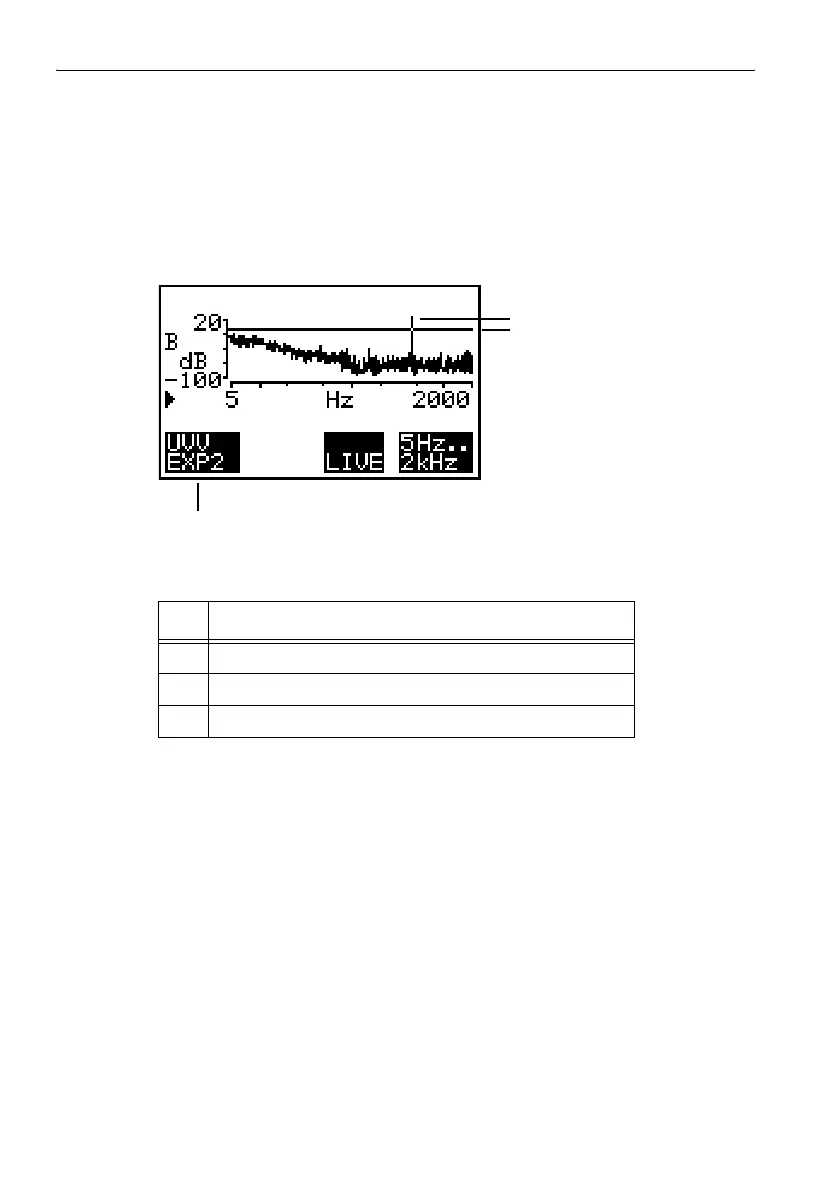

Figure 6-11 Normalized display
Tip: The zoom and marker tools can be used during normalized display.
No. Function
1 Measured value; here, the field strength exceeds the limit
2 0 dB line, simultaneously limit 100 %
3 Selected limit curve
Table 6-7 Elements of the measurement screen with the normalized display
1
2
3
