EFA-200/-300 6 Operating modes
6-31
Note: The measurement should not be halted to evaluate results until the
validity indicator no longer appears in the display.
The validity indicator indicates that internal measured value
computation is still underway. In this case, the averaging of the
measurement results has not yet taken place over the defined
number of single values (NAVG) at the start of the measurement.
Until this state occurs, the displayed measured value has not yet
obtained its final value.
6.4.7 Evaluating measurement results
Note: To be able to simultaneously display the extensive measurement
range on the measurement screen, the measured value axis is
scaled in dB.
Scaled measured value axis (dB scale): see page A-5
Evaluating the measurement screen

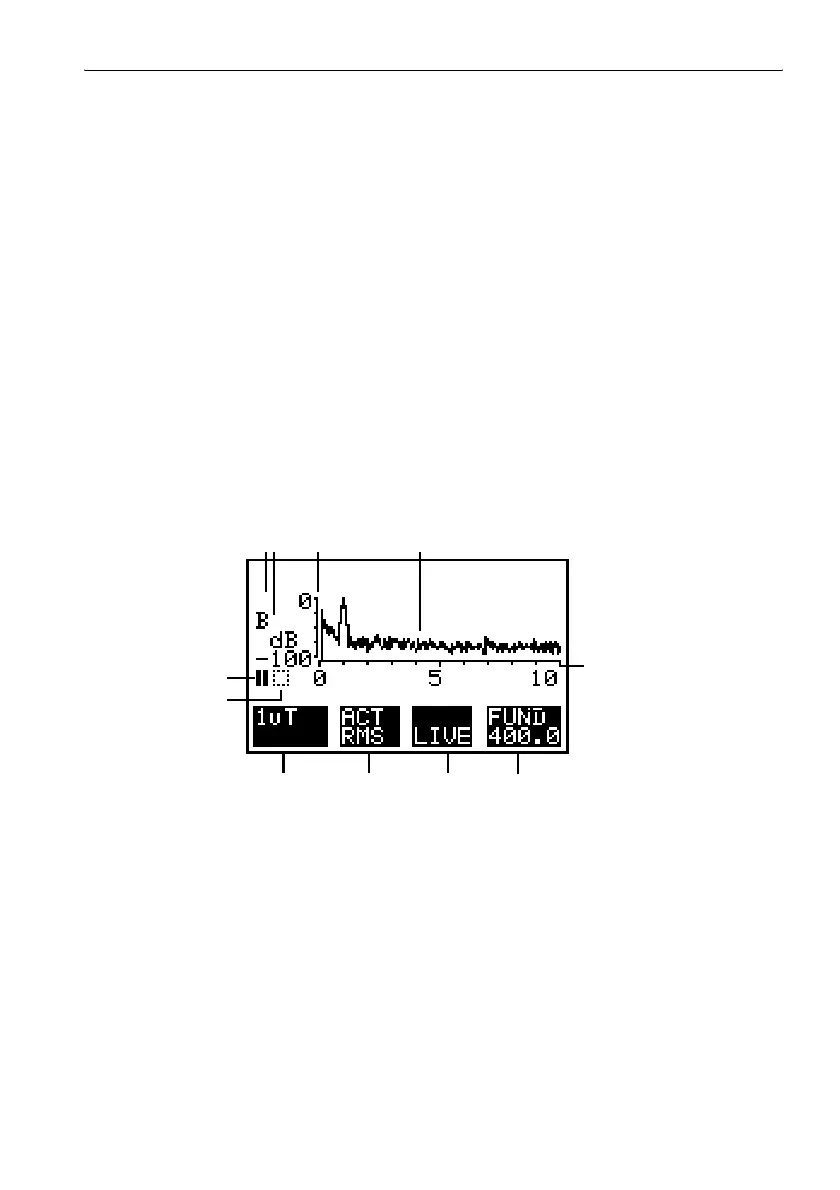

Figure 6-13 Display elements of the measurement screen for Harmonic Analysis
mode
1
2
34
11
9876
5
10
