6 Operating modes EFA-200/-300
6-8

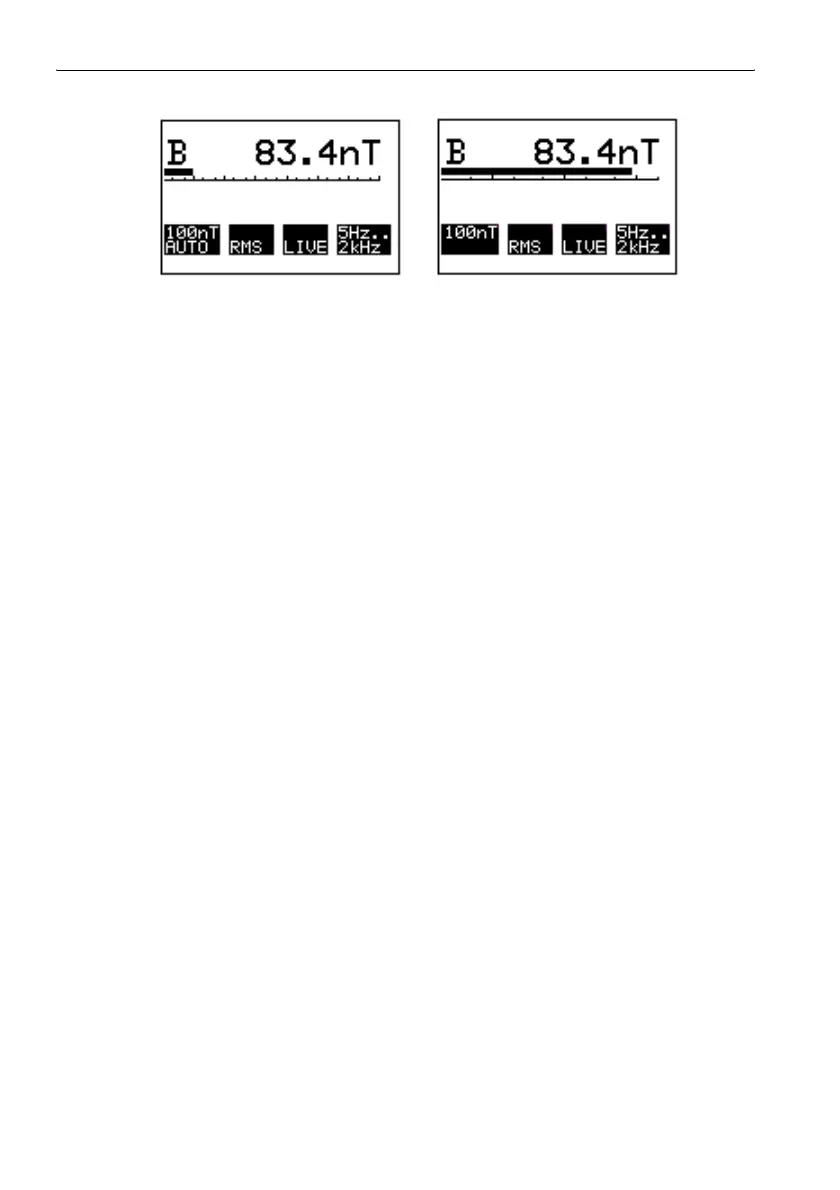

Figure 6-4 Analog result display scaling
Left: Result display for AUTO range mode
logarithmic scale 10 nT to 100 mT
Right: Result display for fixed ranges
logarithmic scale, here from 0.2 nT to 200 nT
6.1.7 Saving data
Data can be captured and stored in the measurement data memory in the
following ways in Field Strength mode:
• Save individual values
Saving individual values: see page 7-2
• Record measurement values over a defined period of time
Recording timer-controlled measurement sequences
(AUTO): see page 7-3
• Save measurement values for a spatial area
Recording spatially assigned measurement sequences
(MATRIX): see page 7-7
