2. Install two screws into a wall. The screw heads must be remained about 3 mm (0.12″).
7 - 9.5 mm
(0.28″ - 0.37″)
83.5 mm
(3.287″)
Minimum 10 mm (0.39″)
3 - 4 mm
(0.12″ - 0.16″)
1 - 3 mm
(0.04″ - 0.12″)

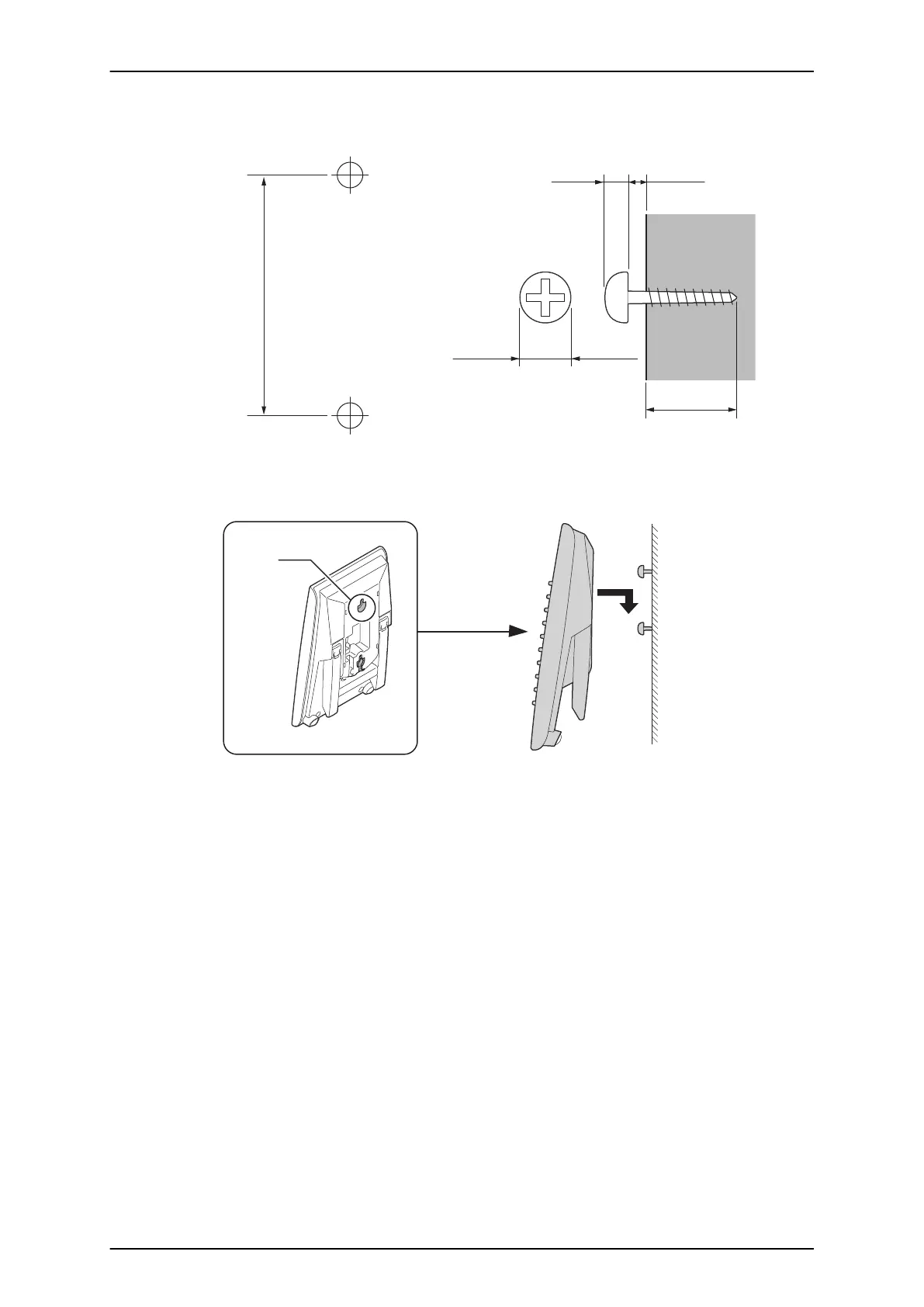

Figure 2-113 Wall-Mount Screw Guide
3. Mount the DSS Console to the wall.
Wall-mounting
holes
Wall side
Figure 2-114 Mounting the DSS
5.4 Installing the Headset
The Multiline Telephone user can utilize a customer-provided headset in place of the handset. Like
using Handsfree, using the headset frees up the user's hands for other work. However, Headset
Operation provides privacy not available from Handsfree.
SL1100 ISSUE 4.1 (R5.1)
2-76 Installation
To Next Page
