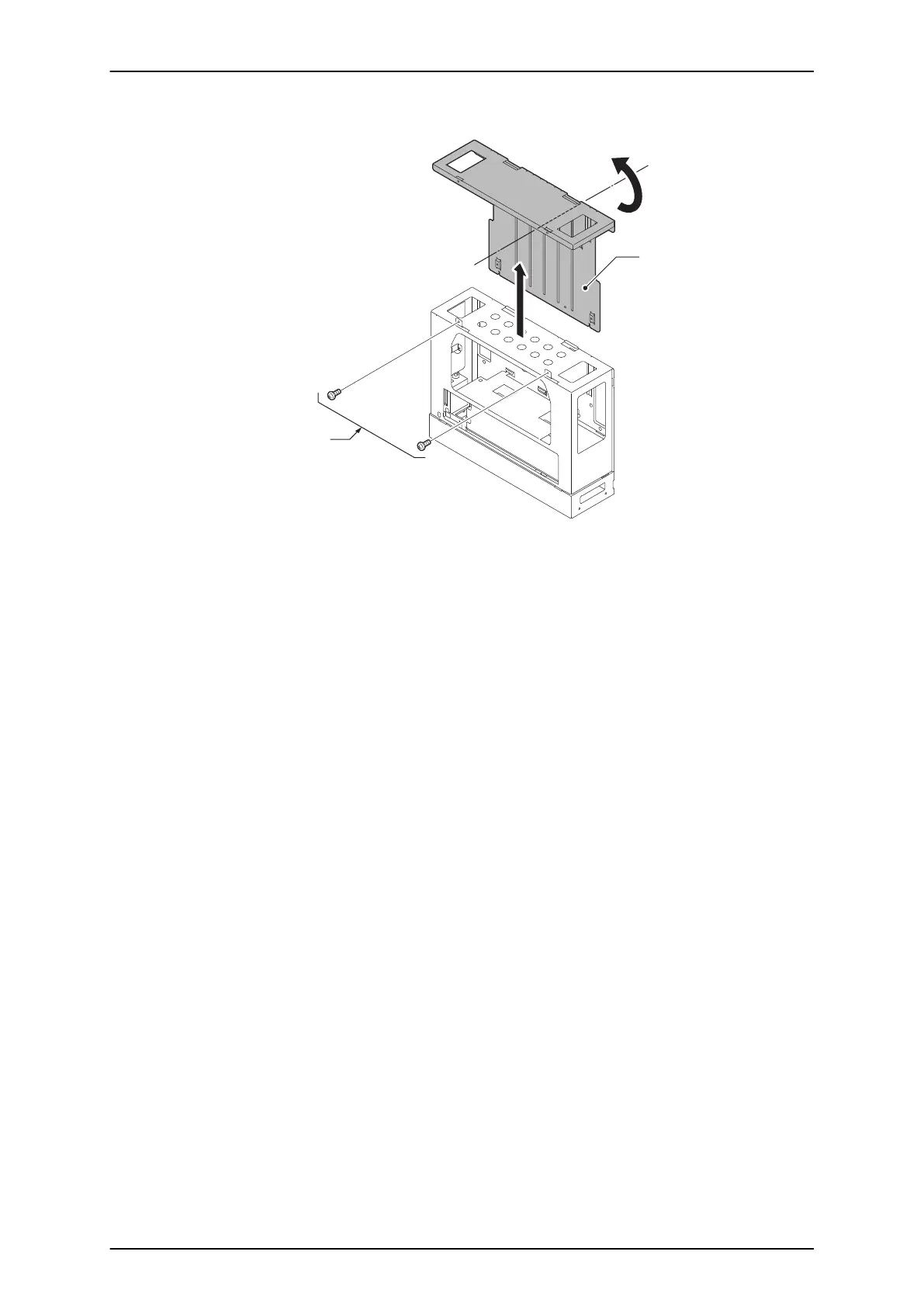

2. Loosen two screws and remove the L-Bracket.
Two screws
(M4 X 8)
L-Bracket
Figure 2-39 Removing the L-Bracket
3. Turn the L-Bracket upside down.
Rotate the L-Bracket 180 degrees so that the upper FACE as shown in Figure 2-39 Removing the
L-Bracket on page 2-28 is located at the bottom as shown in Figure 2-40 Securing the L-Bracket
and WM Hook on page 2-29.
4. Insert tabs on Battery Box into holes on L-Bracket.
Secure the L-Bracket to the Battery Box using two screws.
5. Using two screws (M4x8), secure the WM Hook to the L-Bracket.
SL1100 ISSUE 4.1 (R5.1)
2-28 Installation
