5.2.3 Applying Power to the IP Multiline Telephone
IP Multiline Telephone (IP4WW-24TIXH-C1) supports two different power sources for the Telephone.
• ACA-UA/ AC-LE UNIT
Plug the Optional AC[ ]-[ ] AC adapter input jack in the telephone base unit, and plug the 2-prong
wall plug of the AC adapter in AC outlet.
• PoE(IEEE802.3af)
PoE (Power Over Ethernet) is a LAN technology that allows standard 10Base-T/100Base-TX data
cables to pass electrical current from a power source to a requesting end device.
5.3 Installing the DSS Console
The 60D DSS-B Console can be installed on any digital extension port of 084M-B1/080E-B1 card
directly. The pair extension for the DSS Console is assigned using system programming.
5.3.1 DSS Console Leg Adjustment
The DSS Console provides the leg for angling the console to best suit each user. The leg can be set
for two different heights (Low/High).
5.3.1.1 Low Position Setting
1. Turn DSS Console over (button side down).
2. Adjust the legs to desired height.

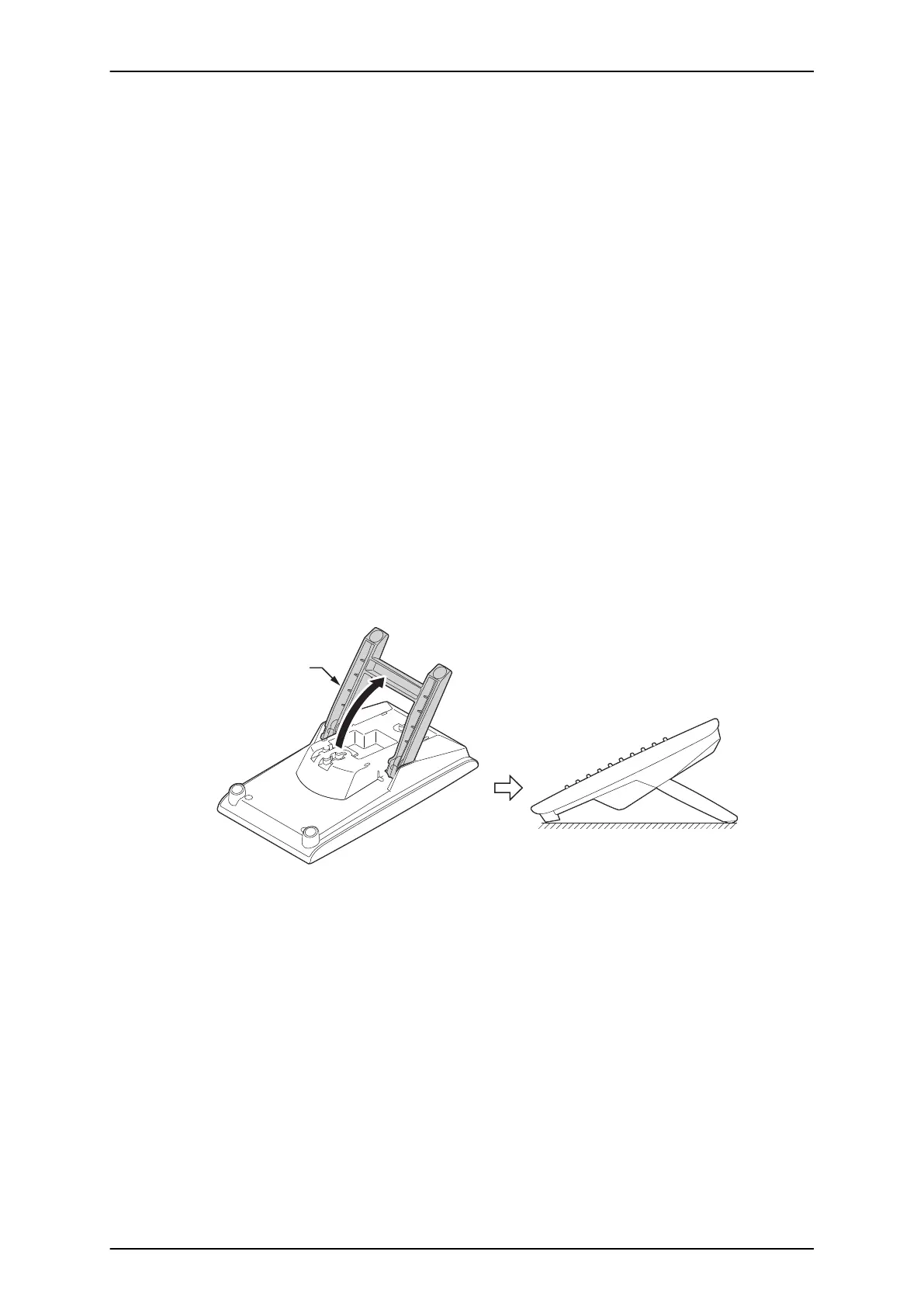

Figure 2-108 Low Position Setting
ISSUE 4.1 (R5.1) SL1100
Hardware Manual 2-73
