1.4 Grounding and AC Cabling
The ETH (Earth Ground Lug) is located near the power supply on the KSU. The Sub-Cover must be
opened in order to access to it.
1.4.1 Grounding the KSU
Ensure Main KSU are powered off and unplug the AC cord.
In the KSU, connect the ETH lug to the verified grounding point using a minimum cable size of
14AWG (Φ2.0 mm) wire.
ETH Lug
To Earth
Screw

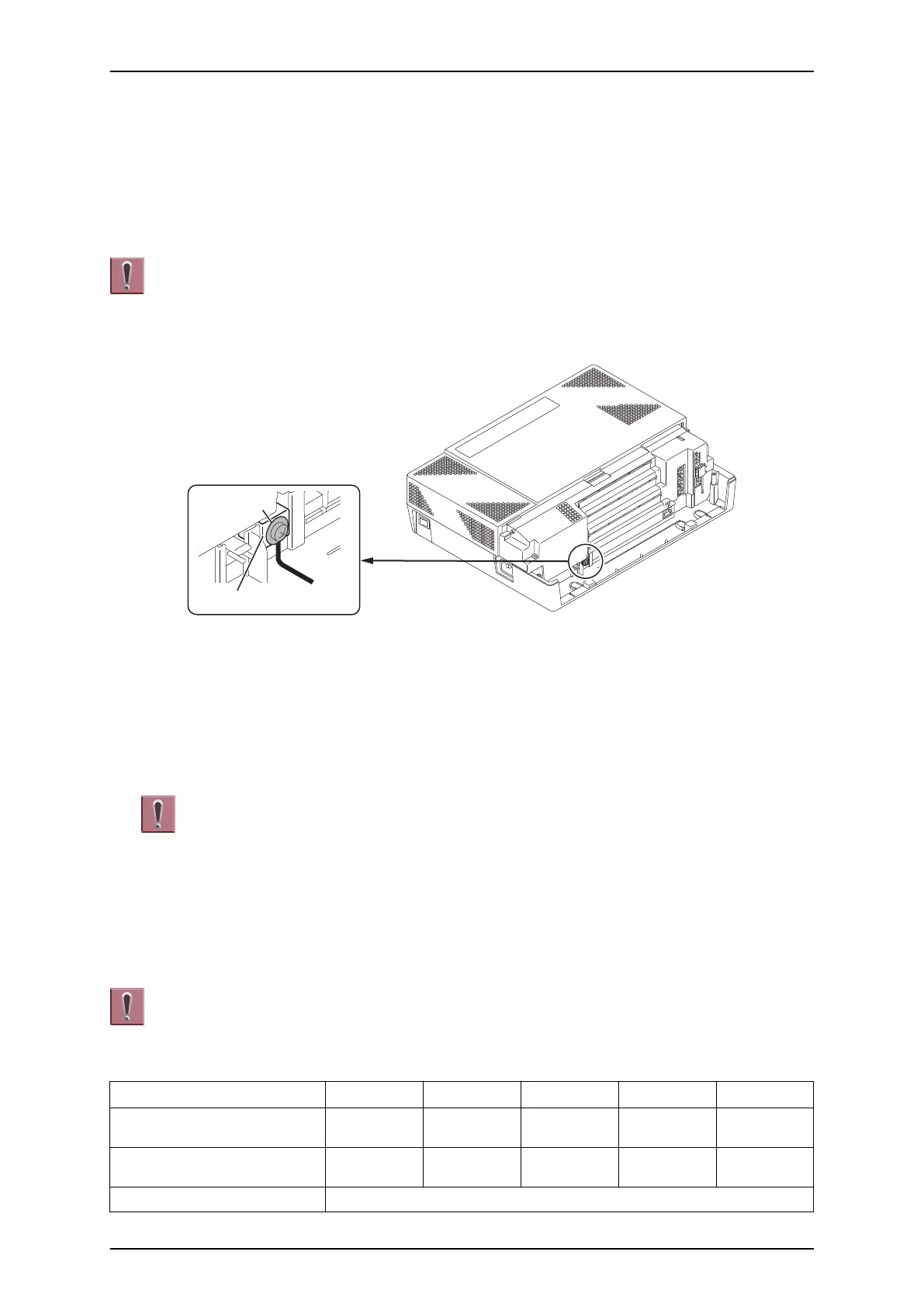

Figure 2-10 ETH Lug
• The grounding cable is supplier-provided.(not attached to the system)
1. Loosen the screw.
2. Insert a grounding wire (user supplied).
3. Tighten the screw.
4. Connect the grounding wire to earth ground.
Proper grounding is very important to protect the system from external
noise and to reduce the risk of electrocution in the event of a lightning
strike.
1.4.2 AC Power Requirement
A dedicated 100V-120V/220V/230V/240V 50/60Hz circuit located within two meters of the KSU is
required. A separate dedicated AC outlet is necessary for the KSU.
Double Pole/Neutral Fusing
(Power supply fuses are located at both the L and N side.)
Table 2-3 Power Requirement
110VAC 120VAC 220VAC 230VAC 240VAC
Power Requirement 110 VAC@15 A 120 VAC@15 A 220 VAC@15 A 230 VAC@15 A 240 VAC@15
A
Power Consumption Main KSU =
128 VA
Main KSU =
130 VA
Main KSU =
154 VA
Main KSU =
154 VA
Main KSU =
156 VA
Input Voltage (Rated Voltage) 90 VAC to 264 VAC (100VAC/120VAC/220VAC/230VAC/240VAC)
ISSUE 4.1 (R5.1) SL1100
Hardware Manual 2-7
