9. Reconnect the Battery Connection Cable to the Fuse Unit.
Battery Connection Cable
Fuse Unit

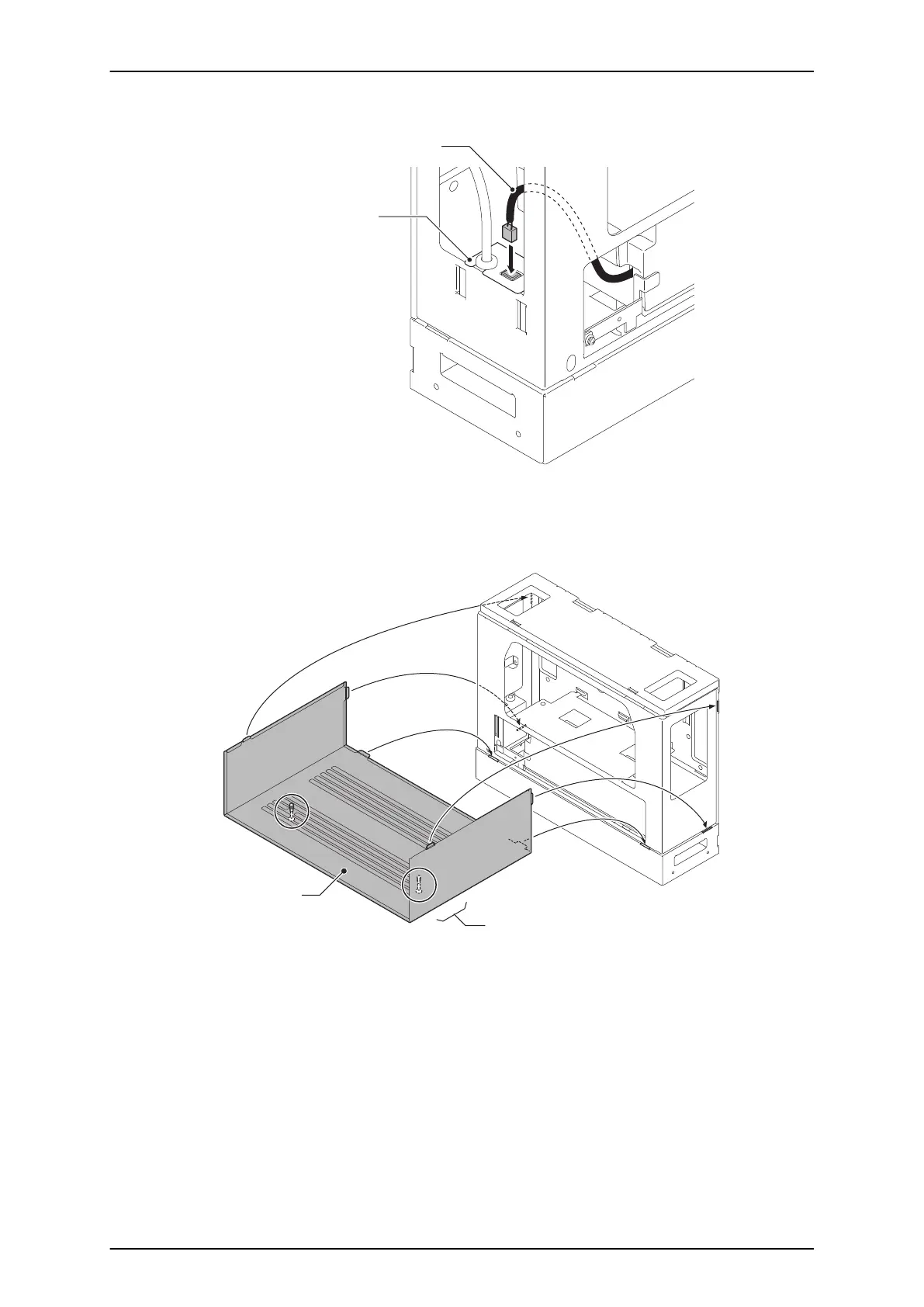

Figure 2-51 Connect Battery Connection Cable
10. Align tabs a to f to holes A to F on Battery Box. Slide the Front Cover into position and tighten the
two screws.
b
a
A
B
C
D
E
F
c
d
e
f
Front cover
Two screws
(with stopper)
Figure 2-52 Installation of the Front Cover
SL1100
ISSUE 4.1 (R5.1)
2-34 Installation
