6. Using one supplied screw (M3x6 with washer), secure the back plane of the Battery Box to the
FM/WM Base.
Two screw holes
(Use either one)
< Front view>

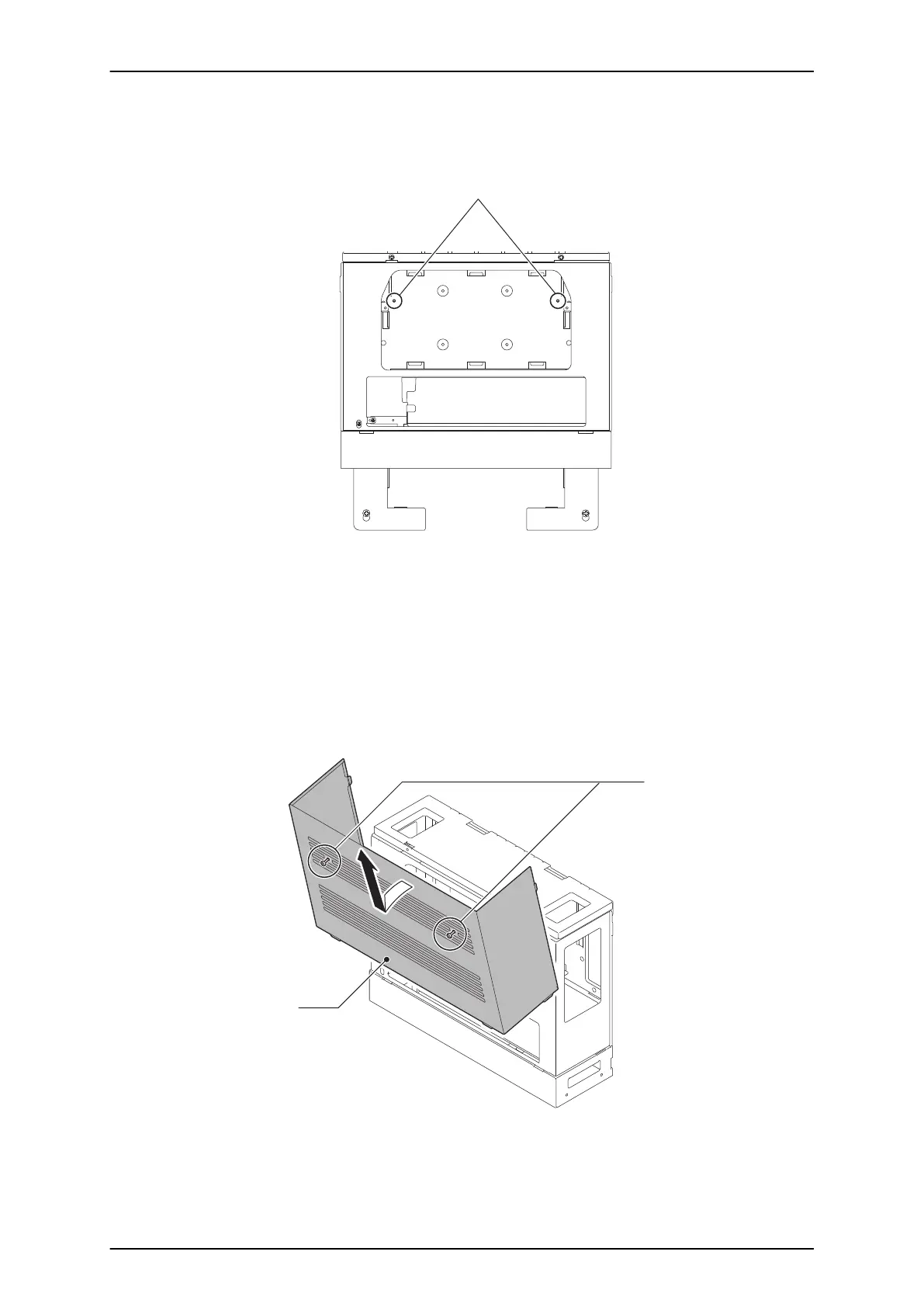

Figure 2-37 Securing the Battery Box
2.6.3 Mounting One KSU on the Battery Box
Before wall-mounting or floor-mounting the IP4WW-Battery Box, a single KSU can be mounted on the
Battery Box.
1. Loosen two screws and remove the Front Cover of the Battery Box.
Front Cover
Two screws
(with stopper)
Figure 2-38 Removing the Front Cover
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-27
