3. Loosen two screws and remove the Main-Cover.
Two screws
Hooks
Main-Cover

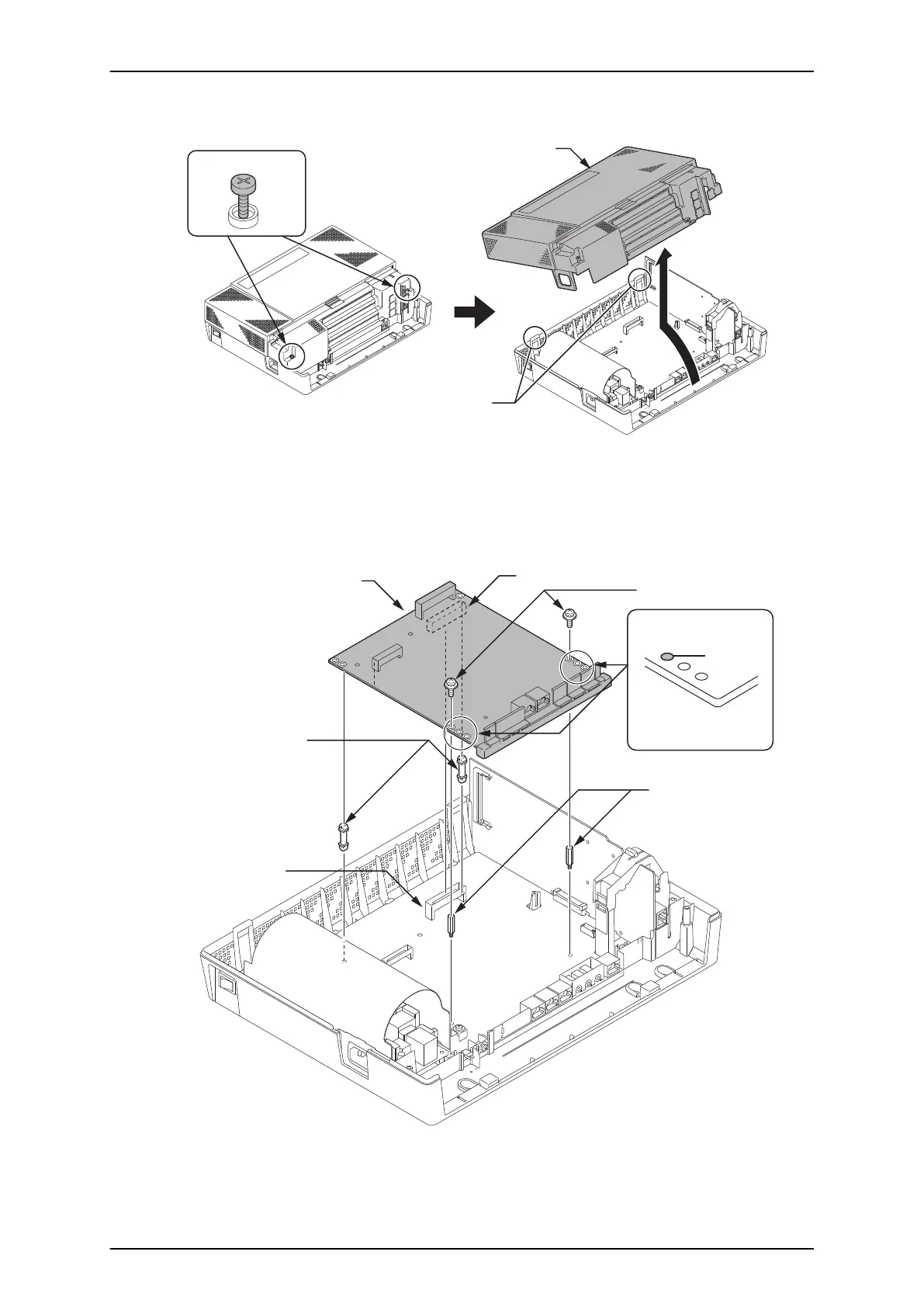

Figure 2-54 Removing the Main-Cover
4. Insert two Nylon-spacers into the specified holes, and fasten two Metal-spacers into the specified
holes. (Both Nylon and Metal spacers are provided with 080E/008E/000E/1PRIU)
If no more Expansion Interface cards are to be mounted on the 1st PCB, fasten two screws to
secure the 1st PCB on the top of the 080E/008E/000E/1PRIU.
Expansion Interface Card
(1st PCB)
J21
J1
Nylon-Spacers
Metal-Spacers
Screw position
1st EXP.
PCB
Both sides are
the same.
Screws
Figure 2-55 Mounting the 1st Expansion Interface Card
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-37
To Next Page
