110VAC 120VAC 220VAC 230VAC 240VAC
Frequency 47 Hz - 63 Hz (Rated Frequency: 50/60 Hz)
Phase and Wire Single Phase, 2 Line + PE Type
Ground Requirement No.14 AWG Copper Wire
Feeding Voltage SLT: 20 mA/ -27 V
AC Input I Main KSU =
1.16 A
Main KSU =
1.08 A
Main KSU =
0.70 A
Main KSU =
0.67 A
Main KSU =
0.65 A
KWh Main KSU =
0.128 KWh
Main KSU =
0.130 KWh
Main KSU =
0.154 KWh
Main KSU =
0.154 KWh
Main KSU =
0.156 KWh
BTU (KWh x 3413) Main KSU =
437 BTU
Main KSU =
444 BTU
Main KSU =
526 BTU
Main KSU =
526 BTU
Main KSU =
532 BTU

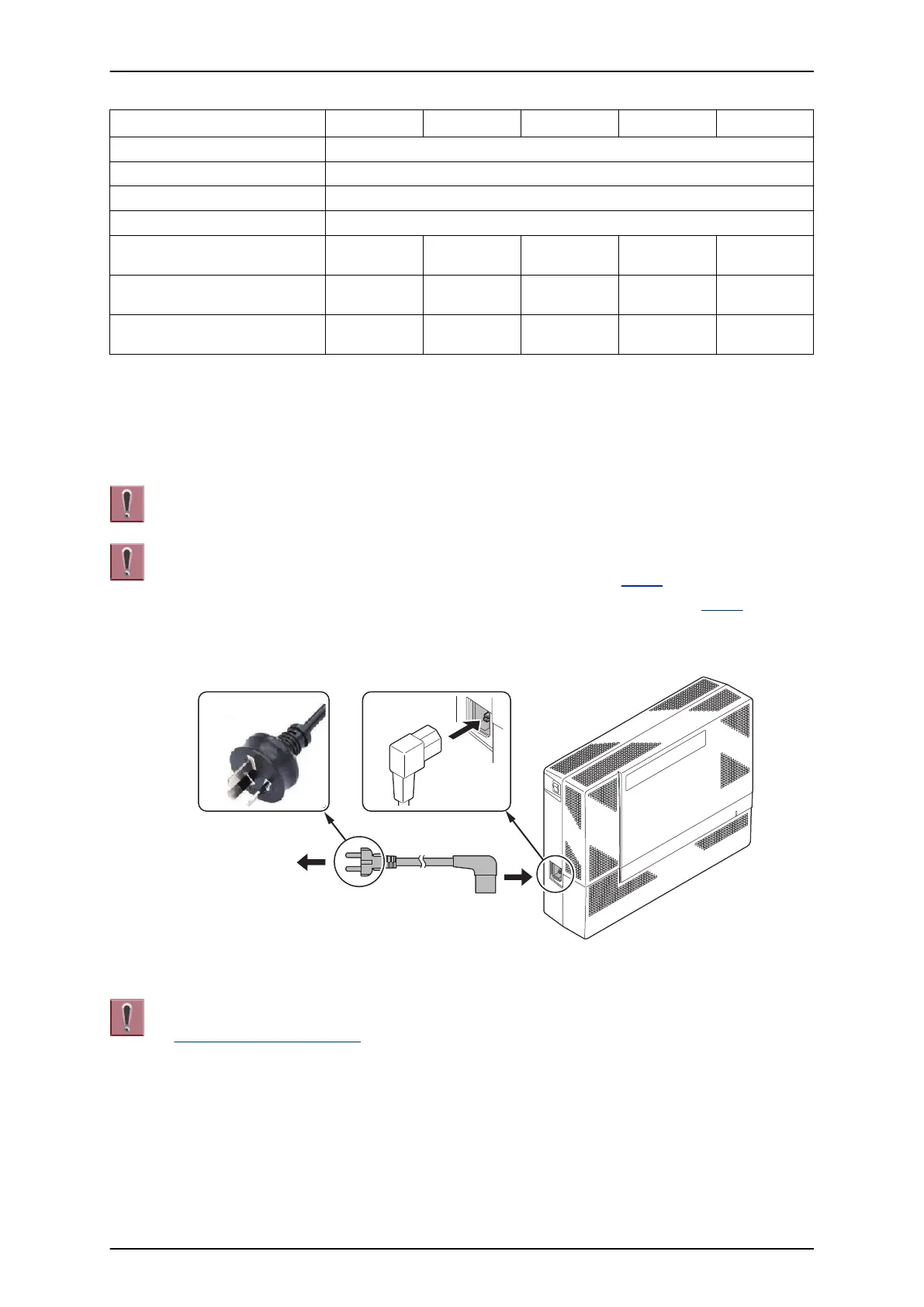

1.4.3 AC Power Cord
The AC power switch and AC power inlet are located at the left side of the KSU. The AC power cord is
connected to the AC inlet and the commercial AC power socket.
Do not plug-in AC power cord if the KSU Cover is removed.
Before connecting the AC power cord, make sure:
• The power switch at the left side of the KSU is turned OFF.
• The power switch at the commercial AC power socket is turned OFF.
• The AC plug fits the commercial AC power socket. The plug adapter is
necessary if it does not fit.
Connect
AC Power Cord
KSU
To Commercial
C Power Socket
Type 3-pin Plug
Figure 2-11 AC Power Cord
• KSU must have its own commercial AC power socket.
• DO NOT POWER ON until KSU installation has been completed.
1.5 Trunk/Extension Cabling
1.5.1 General
The system provides RJ61 modular jacks for analogue/digital extension connections.
SL1100
ISSUE 4.1 (R5.1)
2-8 Installation
