NEC IP4WW-60D DSS-B CONSOLE (BK) - Table 2-24 RJ-61 General Purpose;Door Unlock Relay Control Connector (J7); Table 2-25 General Purpose;Door Unlock Relay Specifications; Figure 2-120 Connecting the Door Unlock Device

J7 (RJ61)
RY1/2
Door unlock control devices
87654321

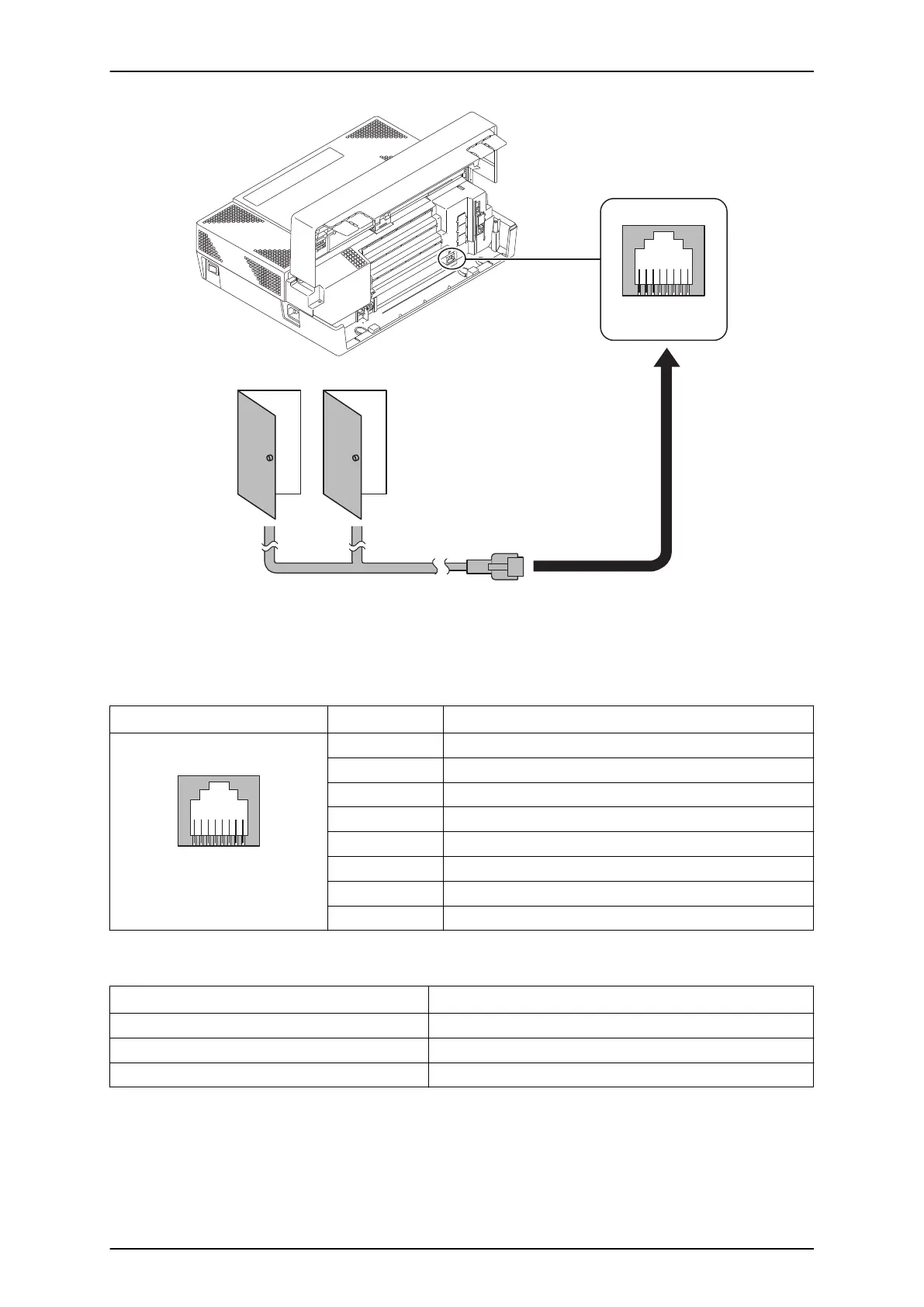

Figure 2-120 Connecting the Door Unlock Device
The following table shows the pin-outs for the RJ-61 cable connector.
Table 2-24 RJ-61 General Purpose/Door Unlock Relay Control Connector (J7)
Pin No. Connection
8 765 4321
RY1/2 (J7)
1 -
2 -
3 Relay 2
4 Relay 1
5 Relay 1
6 Relay 2
7 -
8 -
Table 2-25 General Purpose/Door Unlock Relay Specifications
Item
Specification
Rated Voltage DC 48 V Maximum
Rated Current DC 320 mA Maximum
Contact Normally Open
