2.3 Battery Box Dimensions
340 mm
(13.386″)
230 mm
(9.055″)
500 mm (19.685″)

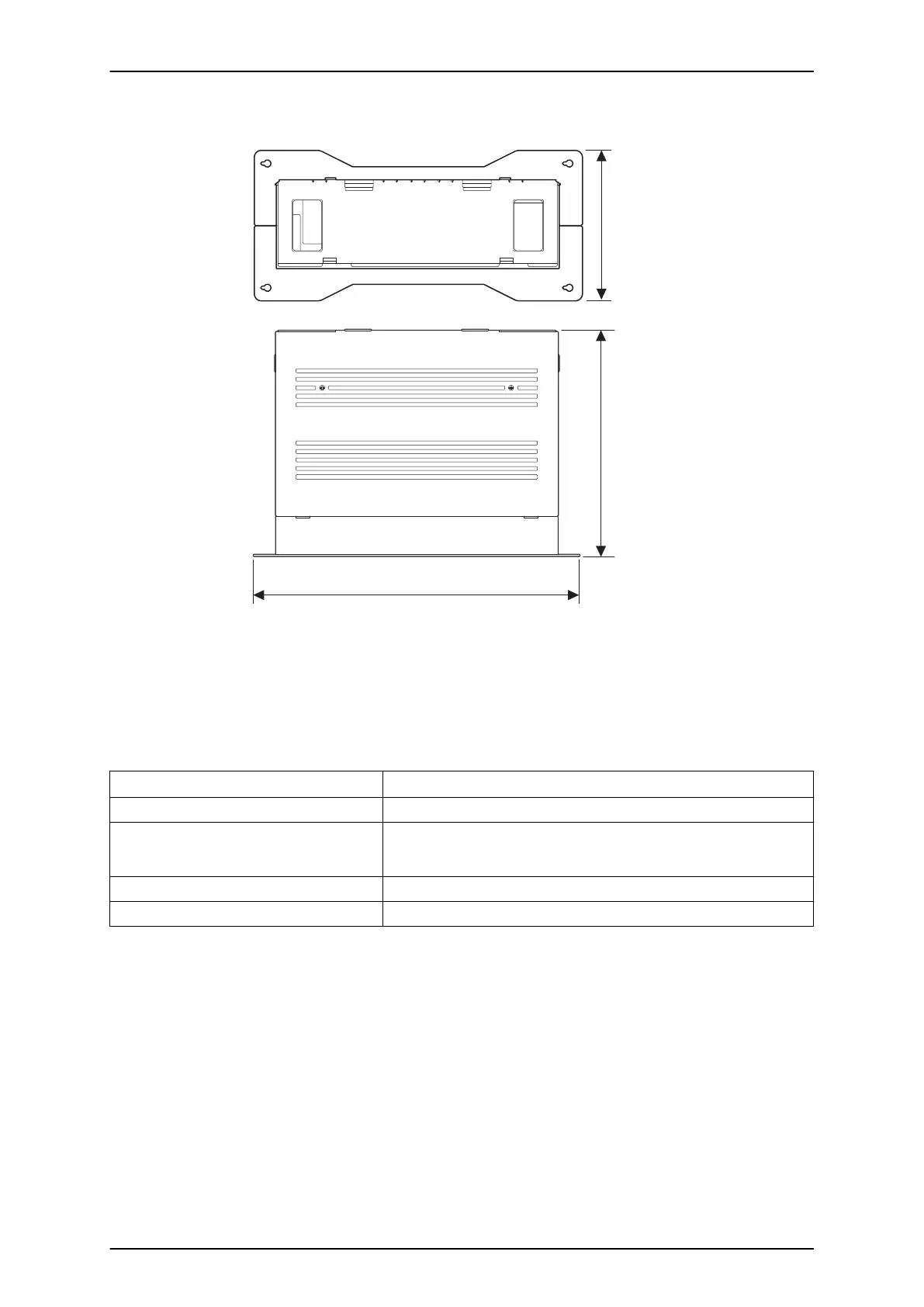

Figure 2-16 Dimension of the IP4WW-Battery Box
2.4 Battery Specifications
Table 2-6 Battery Specifications
Item Data
Capacity 12 V, 7.0 Am/H or equivalent (Voltage must be 12 V)
Recommended Battery GS Yuasa NP7-12 (151 x 65 x 97.5 mm / 2.7 kg)
<GS Yuasa International LTD.>
The Battery must be UL recognized product.
Number of Batteries (per Box) 2
Backup Duration (Estimated) 1 hour
2.5 Battery Installation
Before floor-mounting or wall-mounting the IP4WW-Battery Box, the batteries must be installed into
the IP4WW-Battery Box.
