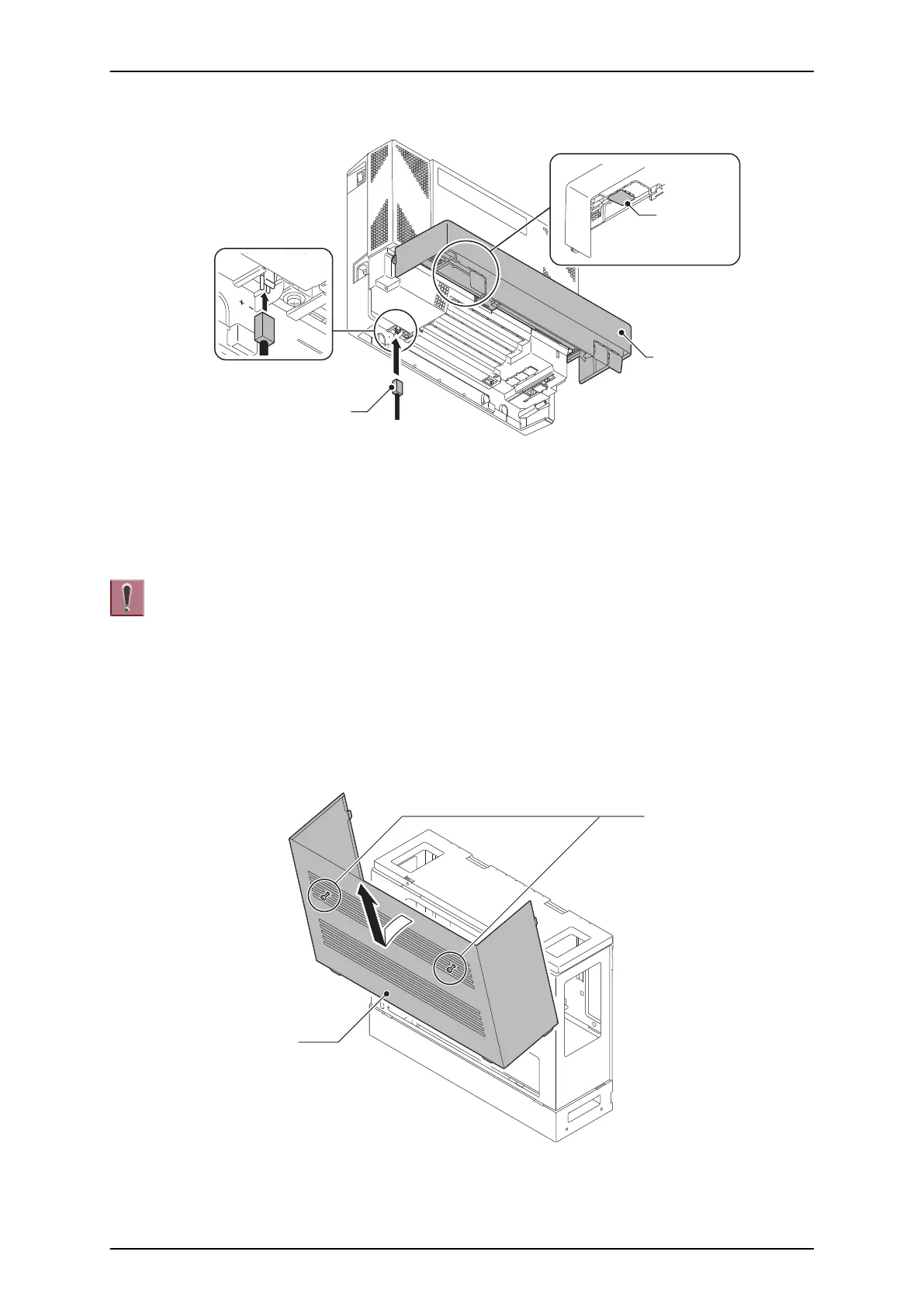

3. Cut and remove Plastic Knockout from the Sub-Cover to connect Battery cable.
Plastic
Knockout
Battery cable
Sub-Cover
Figure 2-44 Connecting Battery Cable
4. Connect Battery cable from the Battery box to Battery connector on the KSU.
2.8 IP4WW-Battery Box Fuse Replacement
• In the event of a blown fuse correct the fault causing the fuse to blow before
replacing the fuse; otherwise you may cause fire or electrical hazards.
• Be sure to use only the specified fuse (250VT8AL).
• Be sure to install the fuse into the correct location.
• Be careful not to burn yourself on the heated fuse. The blown fuse may be
heated soon after blowing.
1. Power off the KSU and disconnect AC cord.
2. Loosen two screws and remove the Front Cover.
Front Cover
Two screws
(with stopper)
Figure 2-45 Removing the Front Cover
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-31
