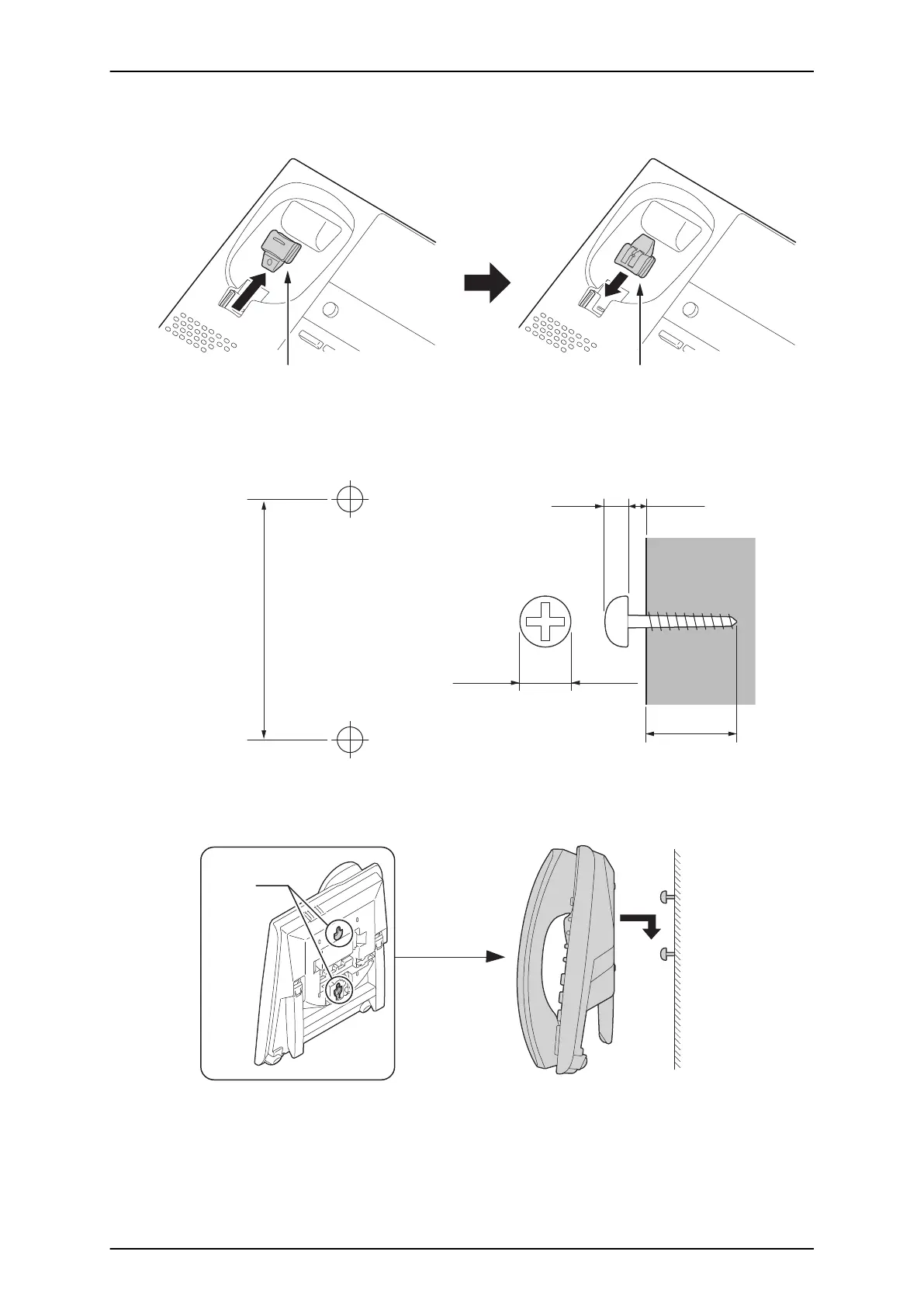

2. Remove the switch-hook from the unit. Turn the tab toward the top. Then slide the hook-switch
into position. Refer to Figure 2-103 Hook-Switch Hanger on page 2-71.
Hook-switch hanger Hook-switch hanger
Figure 2-103 Hook-Switch Hanger
3. Install two screws into a wall. The screw heads must be remained about 3 mm (0.12″).
7 - 9.5 mm
(0.28″ - 0.37″)
83.5 mm
(3.287″)
Minimum 10 mm (0.39″)
3 - 4 mm
(0.12″ - 0.16″)
1 - 3 mm
(0.04″ - 0.12″)
Figure 2-104 Wall-Mount Screw Guide
4. Mount the telephone on the wall.
Wall-mounting
holes
Wall side
Figure 2-105 Mounting the Multiline Telephone
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-71
