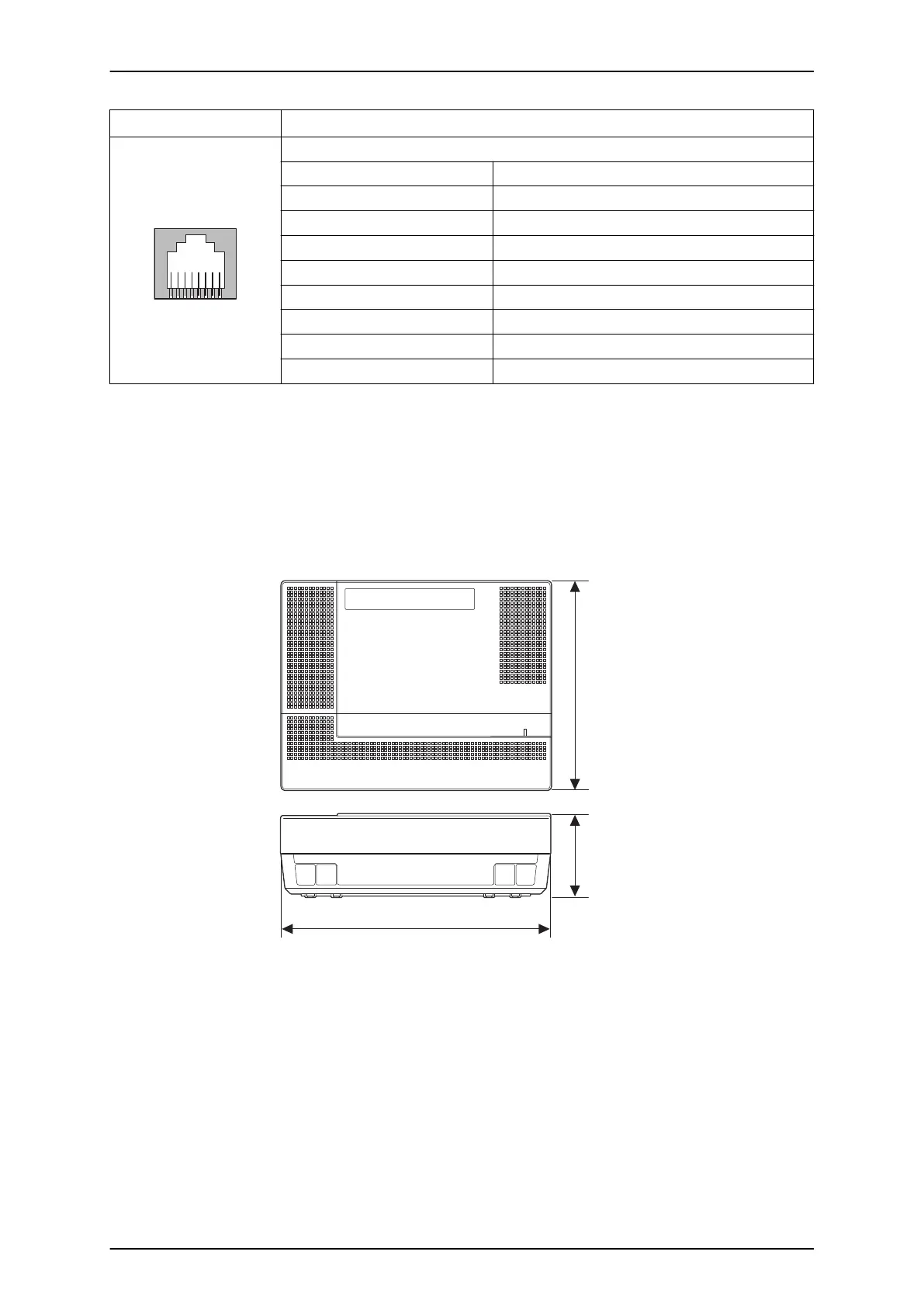

Item Description
J3 (RJ45)
Ethernet Cable Connection (for SMDR (PC, Printer), PCPro or WebPro….etc)
Pin No. Connection
1 Tx+
2 Tx-
3 Rx+
4 -
5 -
6 Rx-
7 -
8 -
For the detail of LED (D1 - D5), refer to Figure 4-17 Inserting the CF Card on page 4-10 and
Table 4-2 CPU LED Indications on page 4-12.
1.3 Wall-Mounting the KSU
1.3.1 KSU Dimensions
For Dimensions of the 1228M-B KSU, refer to Figure 2-2 Dimension of the Main KSU on page 2-3.
290 mm
(11.417″)
115 mm
(4.528″)
375 mm (14.764″)
Figure 2-2 Dimension of the Main KSU
1.3.2 Wall Installation of KSU
The Main KSU (1228M-B) can be mounted on the wall. Before installing, ensure the appropriate
spacing exists as shown below.
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-3
