3.3.2 Mounting the 4COIDB PCB
1. Cut and remove specified Plastic Knockouts on the 084M-B1/080E-B1/008E-B1/000E-B1 PCB.
084M-B1
080E-B1/008E-B1
Plastic
Knockout
Plastic
Knockout
000E-B1
Plastic
Knockouts

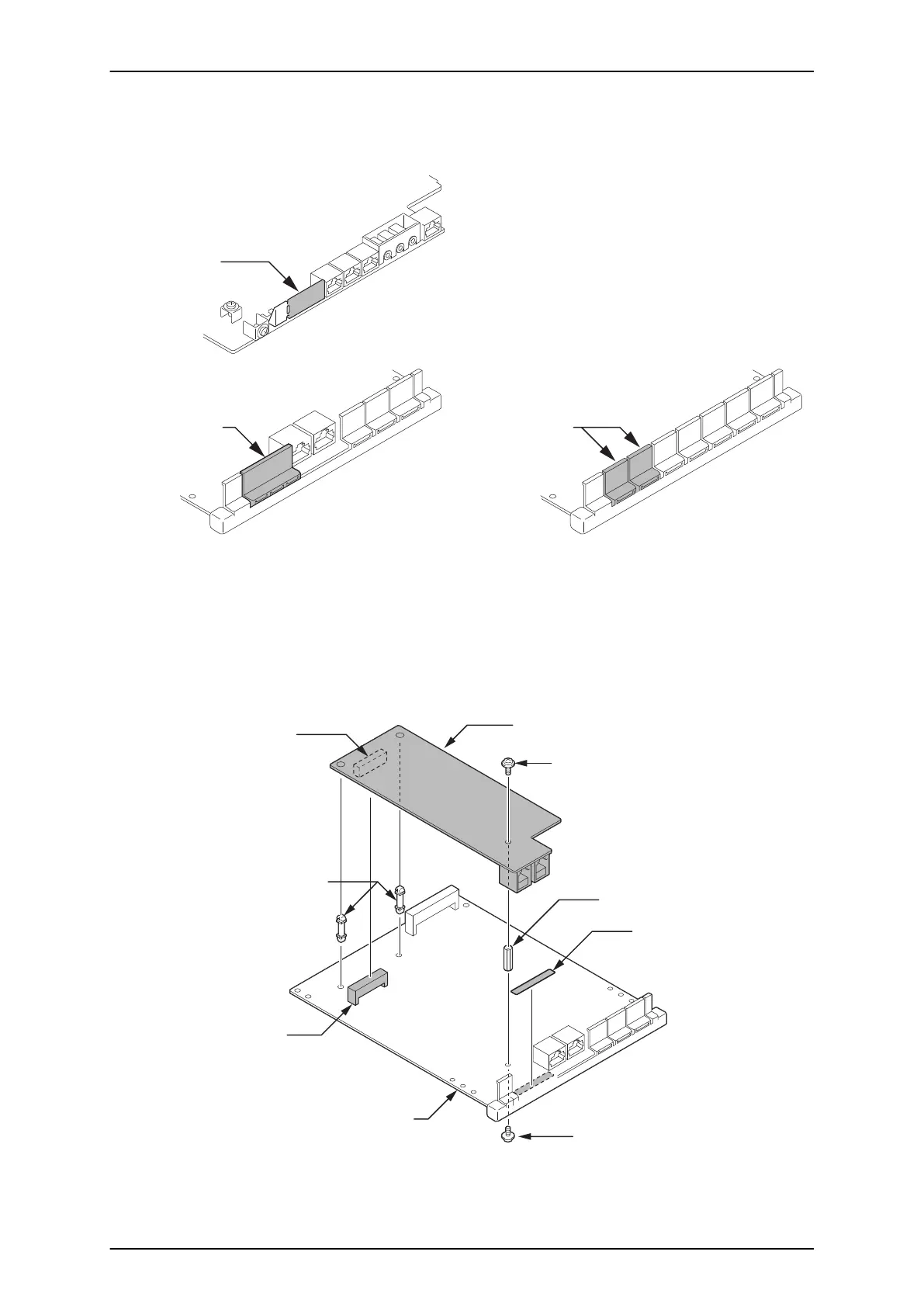

Figure 2-60 Plastic Knockouts on 084M-B1/080E-B1/008E-B1/000E-B1
2. Insert two Nylon-spacers into the specified holes. Using supplied screw, fasten Metal Spacer to
4COIDB-B1 PCB.
3. Mount the 4COIDB-B1 PCB onto the 084M-B1/080E-B1/008E-B1/000E-B1 PCB using two Nylon-
spacers and one screw. (Refer to Figure 2-61 Installing the 4COIDB-B1 on page 2-40)
4. Attach the 4COIDB Label to the specified position on the 084M-B1/080E-B1/008E-B1/000E-B1
PCB.
084M-B1/080E-B1/008E-B1
/
000E-B1 PCB
Nylon-Spacers
J3
J1
Metal-Spacer
4COIDB Label
4COIDB-B1 PCB
Screw
Screw
Figure 2-61 Installing the 4COIDB-B1
