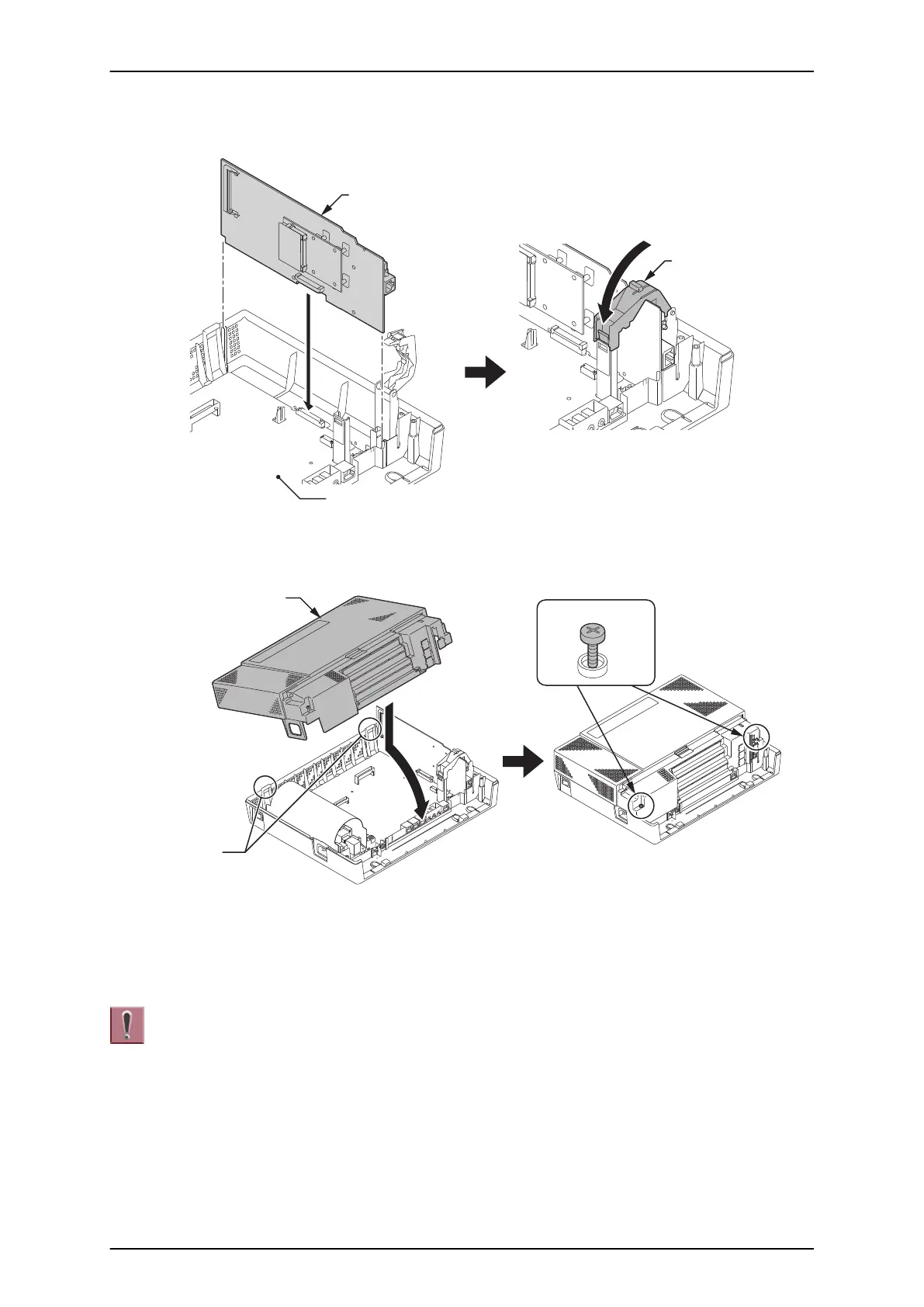

6. Reinstall the CPU card into the 084M-B1 mother board, and close the CPU Support making sure
tab A locks into place.
CPU support
CPU card
084M-B1 at 1228M KSU
Figure 2-93 Installing the CPU Card
7. Replace the Main-Cover and fasten two screws.
Two screws
Hooks
Main-Cover
Figure 2-94 Replacing the Main-Cover
4.4 Installing the CF Card (CFVMS)
When installing a compact flash card onto the PZ-VM21 the system MUST be
powered off. Never install or uninstall the compact flash card while the system
is under power.
1. Turn off the system power and disconnect AC cord.
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-65
