5.7.3 BGM/External MOH Source Input Specifications
Table 2-27 BGM/External MOH Source Input Specifications
Item Specification
Input Impedance 600 Ω @ 1 kHz
Input Level Nominal 250 mV (-10 dBm)
Maximum Input 1 V RMS
5.8 SMDR (Station Message Detail Recording)
5.8.1 General
SMDR (Station Message Detail Recording) provides a record of the system's outside calls. Typically,
the record outputs to a customer-provided SMDR device such as PC via LAN port (J3) on the CPU
card.
J3 (RJ45)
LAN connector
PC
Hub
87654321

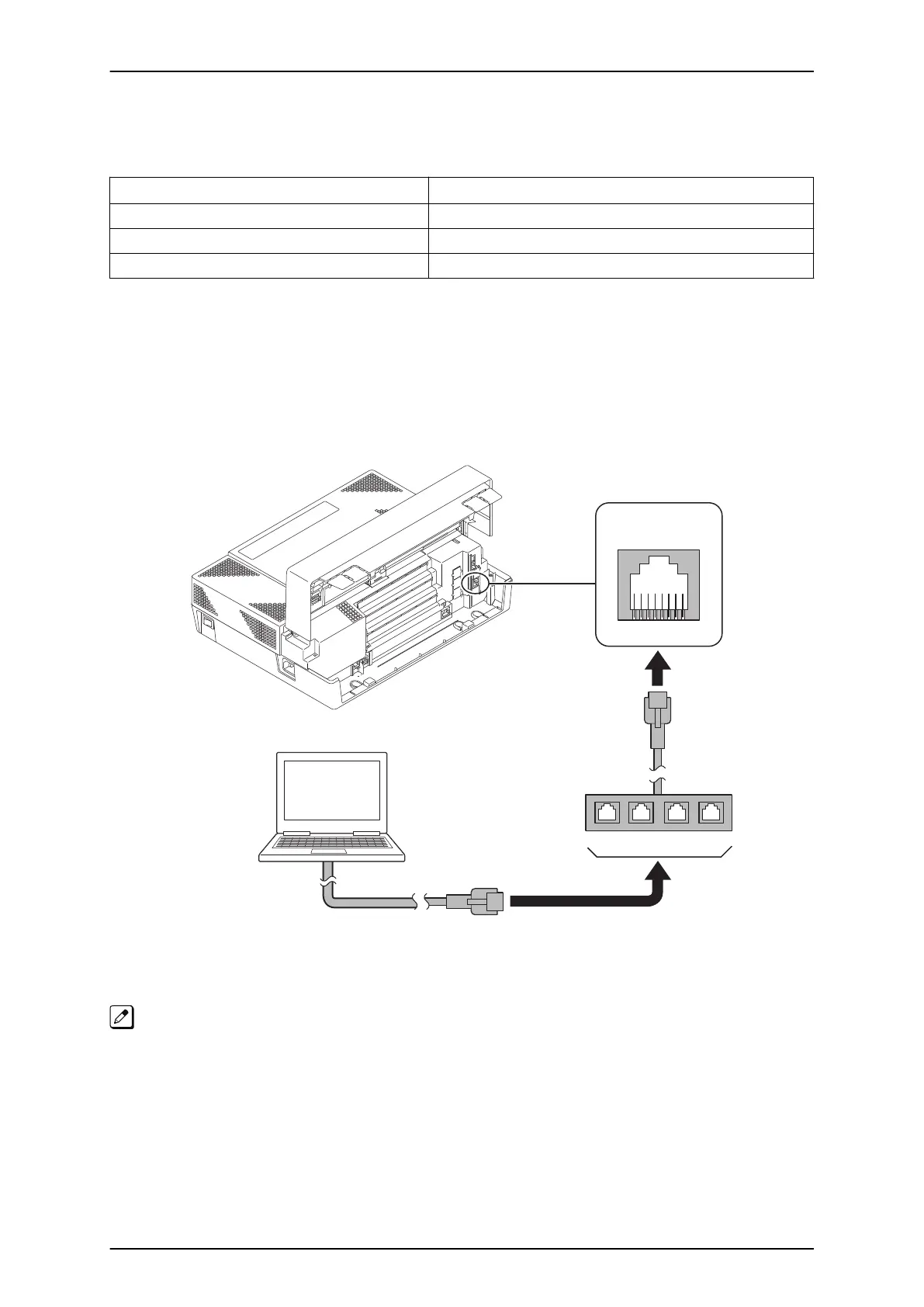

Figure 2-122 Connecting a PC for SMDR
1. Connect the straight type Ethernet cable (CAT5) between the system and In-house LAN.
The SMDR feature is assigned using system programming.
SL1100 ISSUE 4.1 (R5.1)
2-82 Installation
