3. Connect the cable to the screw terminals on the Doorphone box. (No polarity sensitive)
Screw
Upper housing
Connect cable
Wall-mount
bracket
Screw
terminals

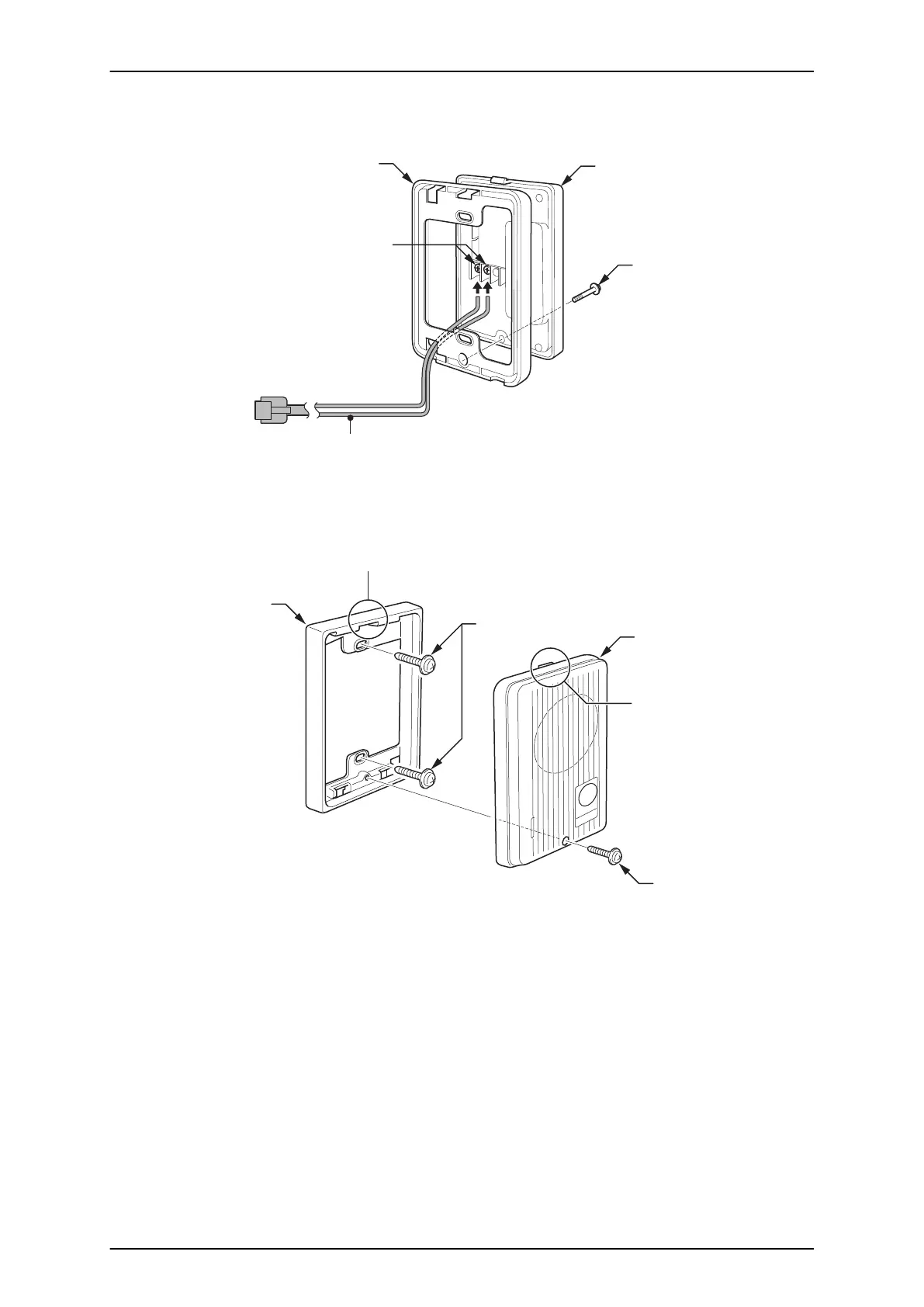

Figure 2-117 Doorphone Box and Bracket
4. Mount the Wall-Mount bracket on the wall using supplied screws.
5. Replace the Upper housing and tighten the screw.
Upper housing
Hook
Attached screws
Hole
Screw
Wall-mount
bracket
Figure 2-118 Doorphone
SL1100 ISSUE 4.1 (R5.1)
2-78 Installation
