6. Using two anchor bolts (locally procured), secure the WM Hook to the wall.
The WM Hook is required for securing both Floor-mount and Wall-mount cases.
Two screws
(M4 X 8)
Two screws
(M4 X 8)
Anchor Bolts
L-Bracket
WM Hook

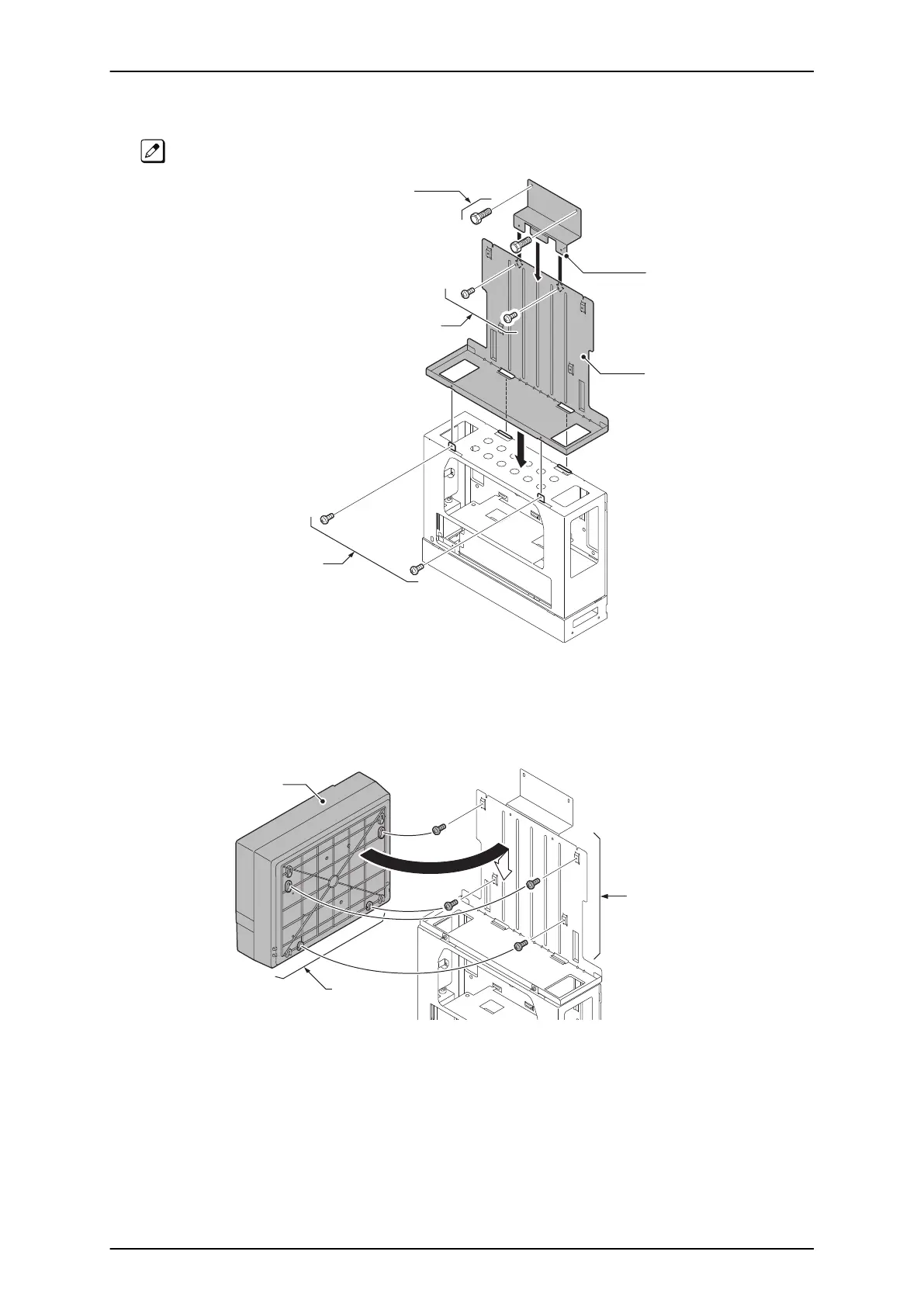

Figure 2-40 Securing the L-Bracket and WM Hook
7. Install four screws into the L-Bracket (Do not tighten). A space of 2.5 mm (0.098″) to 3.5 mm
(0.138″) for KSU mounting is required. Mount the KSU on the screw heads.
Four Screws
(M4 X 8)
Four holes
KSU
A
B
D
C
C
a
b
c
d
a
b
c
d
Figure 2-41 Attaching the KSU
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-29
