NEC IP4WW-60D DSS-B CONSOLE (BK) - Figure 2-62 Mounting the 4 COIDB-B1 into the KSU; Figure 2-63 Replacing the Main-Cover

The 4COIDB-B1 cannot be mounted on the 1PRIU-C1 PCB.
5. Mount the 4COIDB-B1 with 084M-B1/080E-B1/008E-B1/000E-B1 PCB into the KSU.
084M-B1/080E-B1/008E-B1/000E-B1 PCB
and 4COIDB-B1 PCB
Nylon-
Spacers
J1
Metal-Spacers
J21
Screws

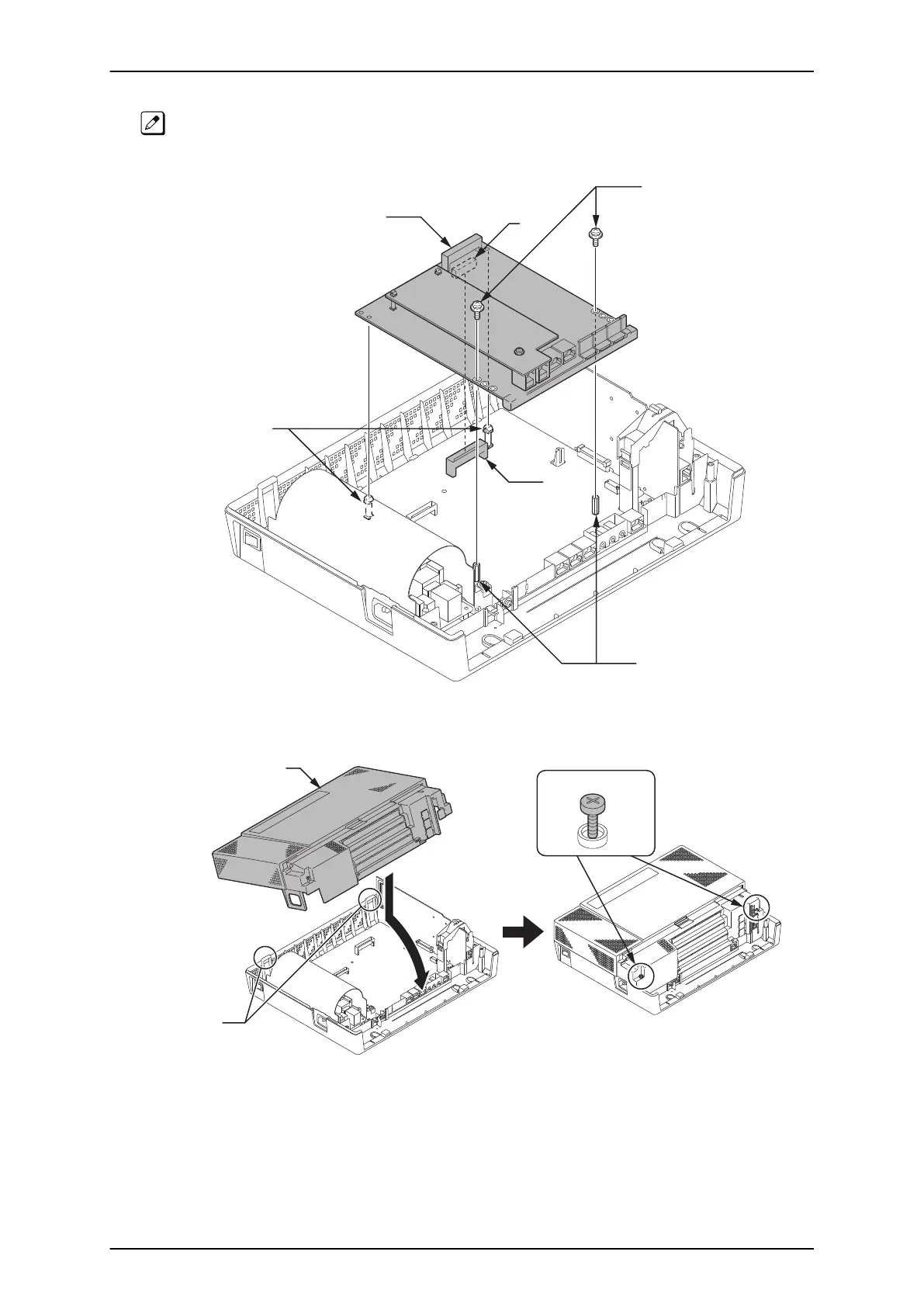

Figure 2-62 Mounting the 4COIDB-B1 into the KSU
6. Replace the Main-Cover and fasten two screws.
Two screws
Hooks
Main-Cover
Figure 2-63 Replacing the Main-Cover
