NEC IP4WW-60D DSS-B CONSOLE (BK) - Figure 2-3 Wall Mount of KSU; Figure 2-4 Wall-Mounting Template; Mounting Procedure of KSU

Minimum 200 mm
(7.874″)
for ventilation
Minimum 300 mm
(11.811″)
Minimum 300 mm (11.811″)
Main KSU
Minimum 200 mm
(7.874″)
for wiring
Ceiling
Floor
Wall

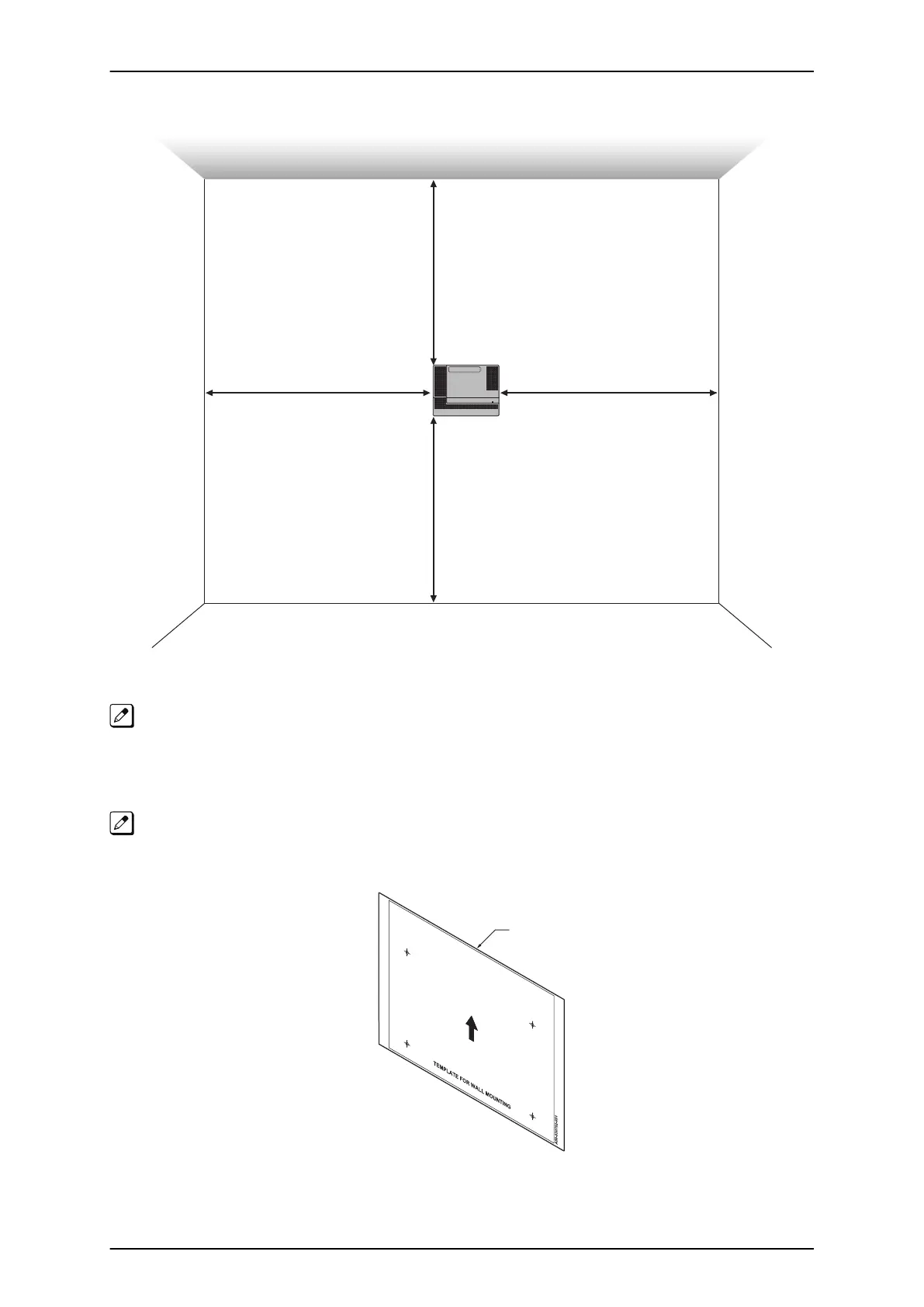

Figure 2-3 Wall Mount of KSU
• In the case, the KSU is mounted on Battery Box, refer to Wall-Mounting the IP4WW-Battery Box on
page 2-23.
1.3.3 Mounting Procedure of KSU
One Main KSU can be mounted per IP4WW-Battery Box. For the mounting, refer to Mounting One KSU
on the Battery Box on page 2-27.
1. Place the attached template on the wall to mark the four screw positions.
UP
Template
Figure 2-4 Wall-Mounting Template
