3.4.4.1 Connectors
The following table shows the pin-outs for the RJ-61 cable connector for CO (J2) and PF (J3)
connections.
Table 2-11 RJ-61 CO/PF Pin-Outs (J2, J3)
Pin No. CO1-4 (J2): CO Port Connector
(RJ-61)
PF1 (J3): PF Tel Port Connector
(RJ-61)
1 T4 (Tip for port 4) -
2 T3 (Tip for port 3) -
3 T2 (Tip for port 2) -
4 R1 (Ring for port 1) R1 (Ring for port 1)
5 T1 (Tip for port 1) T1 (Tip for port 1)
6 R2 (Ring for port 2) -
7 R3 (Ring for port 3) -
8 R4 (Ring for port 4) -
3.4.5 Cabling and Setting IP4WW-2BRIDB-C1
This IP4WW-2BRIDB-C1 PCB provides two RJ-61 BRI connections.

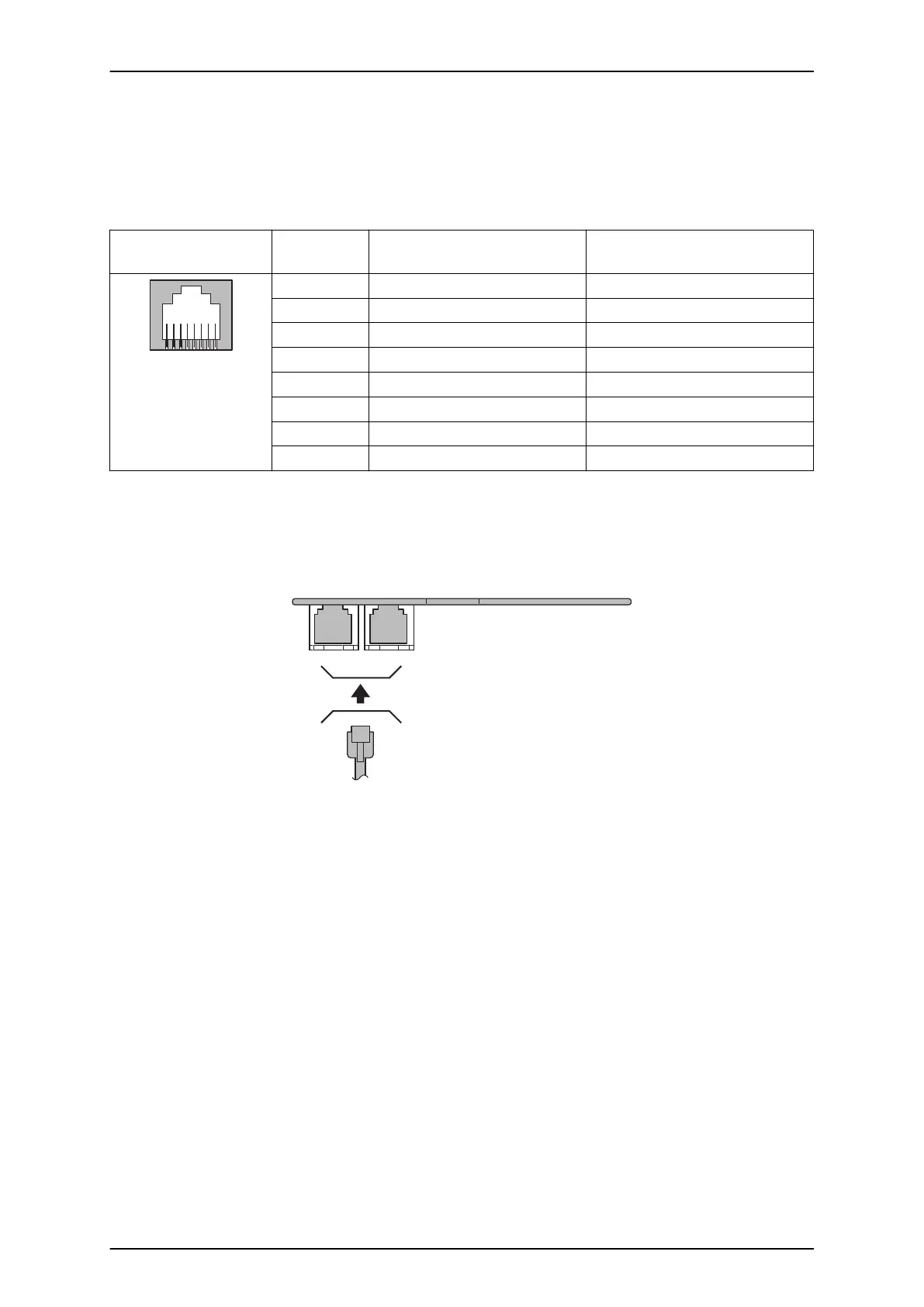

Figure 2-71 Connectors of 2BRIDB-C1
3.4.5.1 Connectors
The following table shows the pin-outs for the RJ-61 cable connector for S-Bus and T-Bus
connections.
SL1100
ISSUE 4.1 (R5.1)
