6. Reinstall the CPU card into the 084M-B1 mother board, and close the CPU Support making sure
tab A locks into place.
CPU support
084M-B1 at 1228M KSU
CPU card

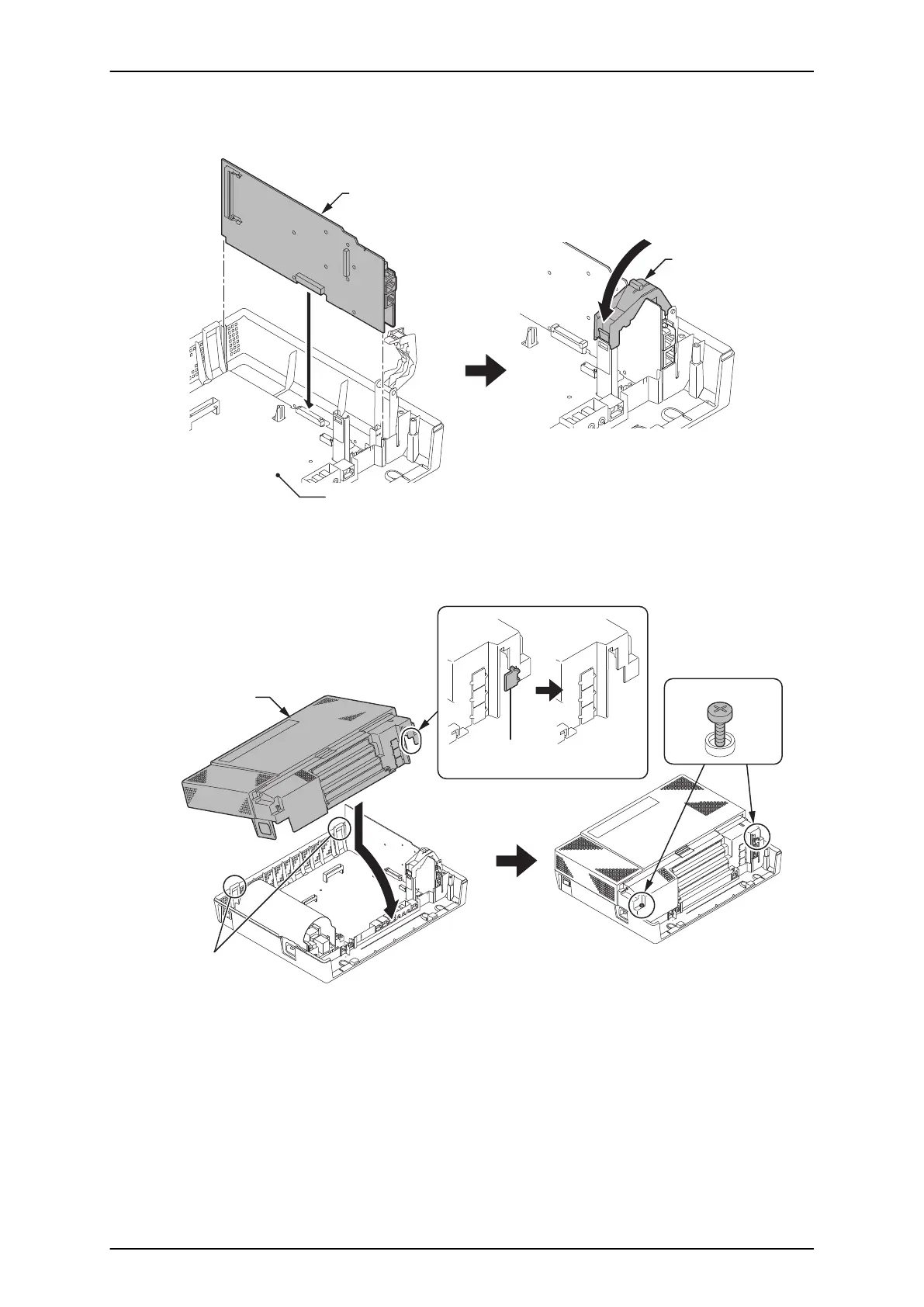

Figure 2-85 Installing the CPU Card
7. Cut and remove the Plastic Knockout for VoIP connector, then replace the Main-Cover and fasten
two screws.
Two screws
Hooks
Main-Cover
Plastic
Knockout
Figure 2-86 Removing the Plastic Knockout and Replacing the Main-Cover
