1.5M 2M
J6
J6
J7
J7
J8/9
J8 J9
J5
PRI 1
D3
(Red)
D3 D4
D4
(Green)
1.5M 2M
TS
IP4WW-1PRIU-C1

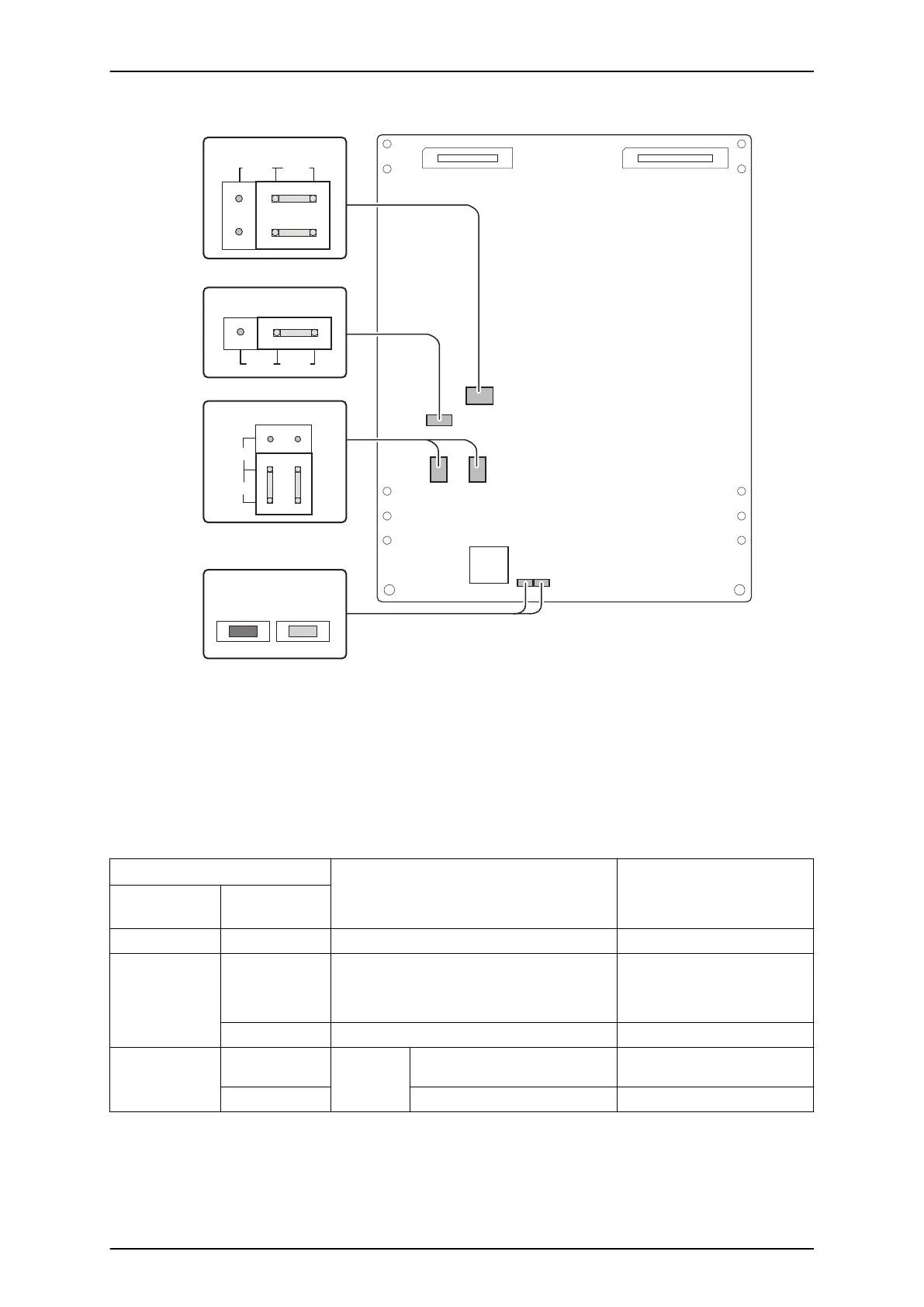

Figure 2-74 Switches and LEDs Location of 1PRIU-C1
3.4.6.3 LED Indication
LED indications for the IP4WW-1PRIU-C1 are listed in following table. Each LED is listed with its
associated function and LED and operational status.
Table 2-16 LED Indication
LED Indication
Operation Status Remarks
Live LED (D4)
(Green)
Busy LED (D3)
(Red)
On On System Initializing -
Flash (1s) On The assignment of the unit is refused When you exceed the system ca-
pacity.
When the main software version
is not matched.
Flash (1s) Trouble found during self-diagnostics. -
Flash (100ms) On Normal Op-
eration
A Channel is busy (use another
from Ch1 - Chx)
-
Off All channels are Idle. -
SL1100 ISSUE 4.1 (R5.1)
2-52 Installation
