5.7 Installing the External Paging Speaker/External MOH/BGM Sources
5.7.1 Connecting the Audio Equipment
• The audio jack labeled PAGE, MOH, BGM can be used for audio port (External paging, External MOH,
BGM)
• Audio port configuration is assigned using system programming.
Audio IN/OUT Jack
BGM MOH PAGE
PAGE : Audio in/out
(External paging)
MOH : Audio in
(External MOH)
BGM : Audio in
(BGM)
PAGE
Paging system Audio resource
MOH, BGM

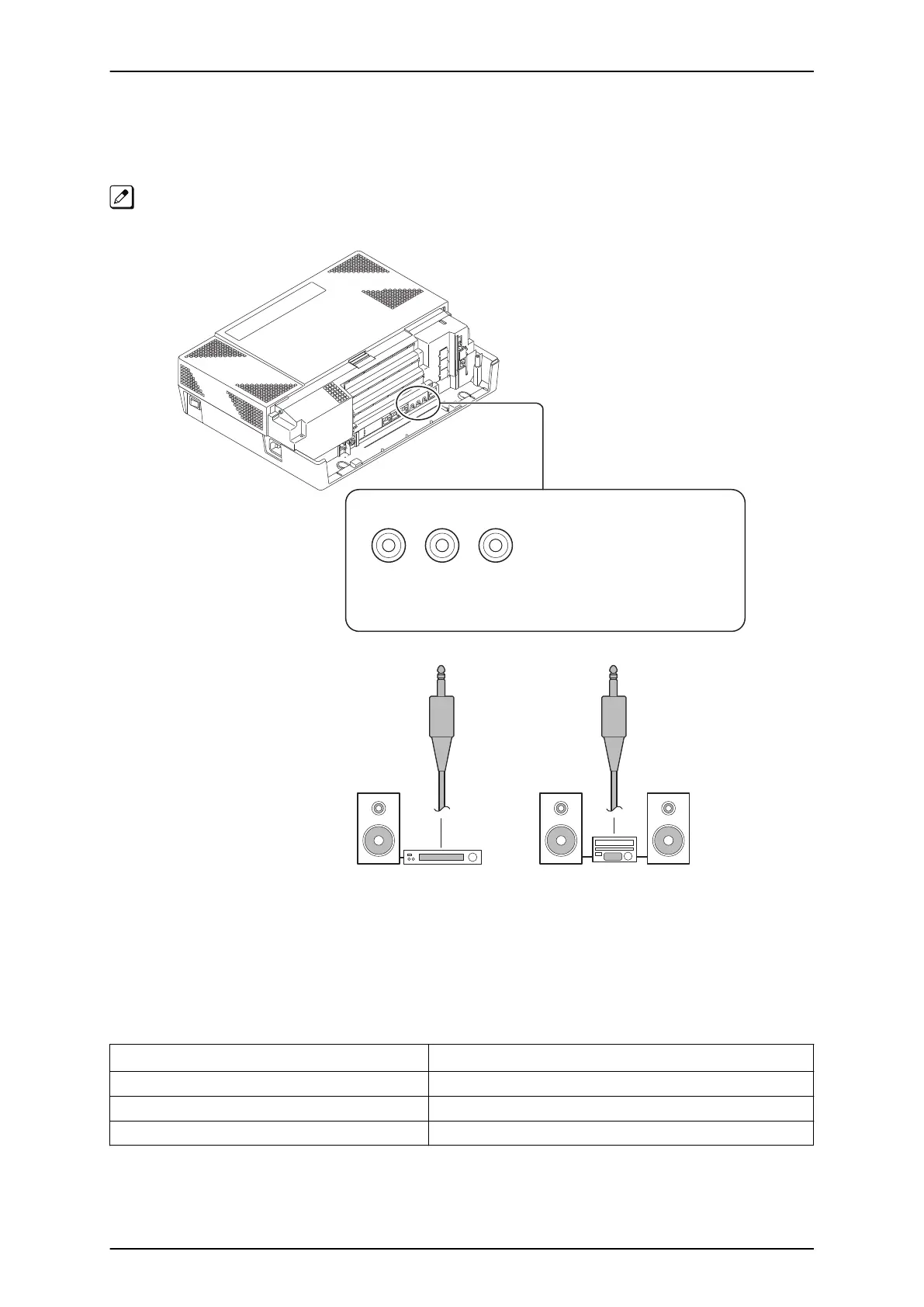

Figure 2-121 Connecting Audio Equipment
5.7.2 External Paging Output Specifications
Table 2-26 External Paging Output Specifications
Item
Specification
Output Impedance 600 Ω @ 1kHz
Output Level Nominal 250 mV (-10 dBm)
Maximum Output 400 mV RMS
ISSUE 4.1 (R5.1) SL1100
Hardware Manual 2-81
