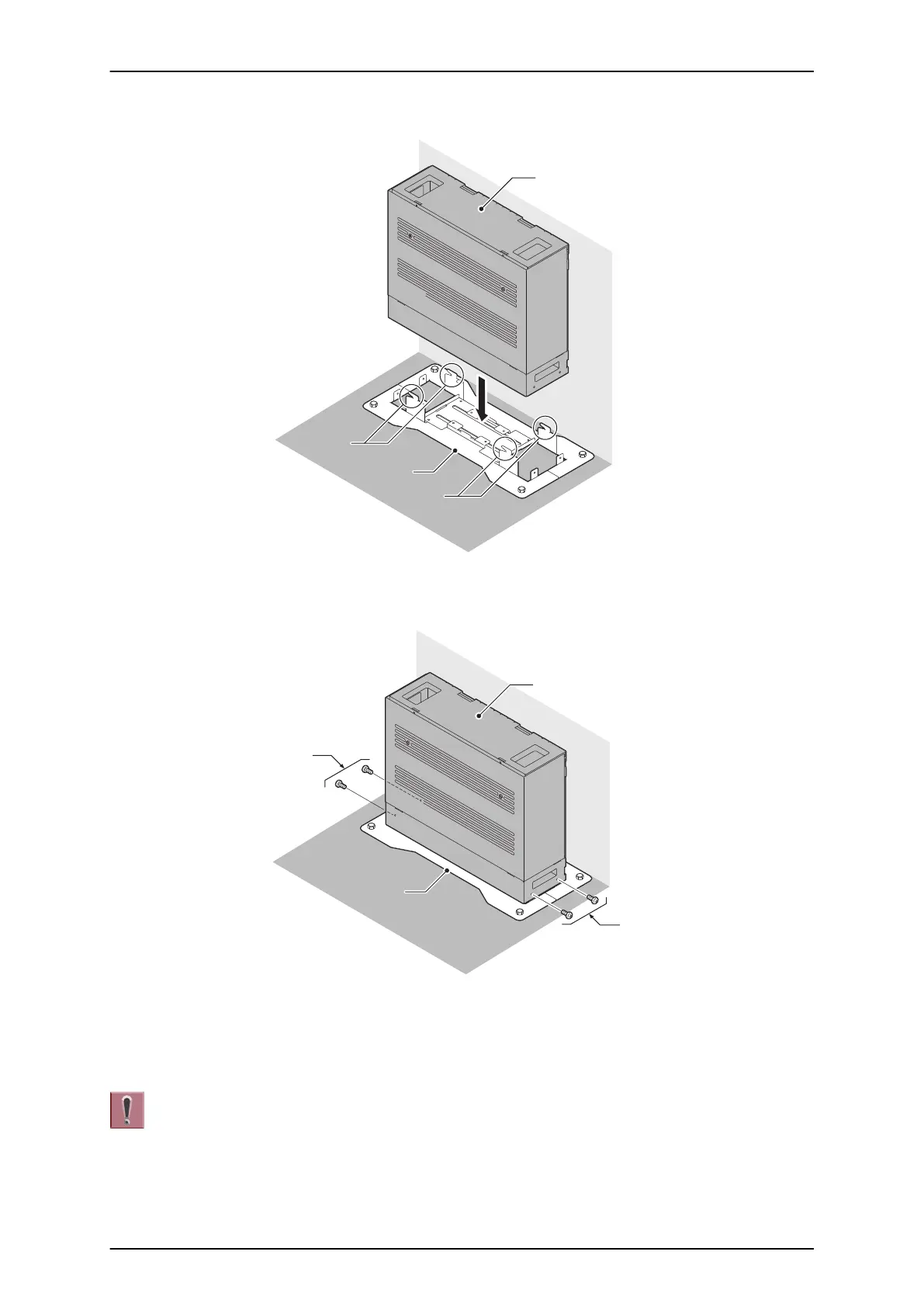

4. Using the four hooks on the FM/WM Base mount the IP4WW-Battery Box on the Base.
Hooks
IP4WW-Battery Box
Hooks
Figure 2-31 Mounting the Battery Box
5. Using four supplied screws, secure the IP4WW-Battery Box to the FM/WM Base.
Two Screws
(M4 X 8)
Two Screws
(M4 X 8)
IP4WW-Battery Box
Figure 2-32 Securing the Battery Box
2.6.2 Wall-Mounting the IP4WW-Battery Box
When wall-mounting the IP4WW-Battery Box, ensure the wall can support the
weight of the Battery Box (Total weight=17.6 kg (620.75 oz) - Including 2-
batteries, cord, KSU, etc). The Battery Box is secured to the wall using the
FM/WM BASE. Ensure that enough space is available to allow the installation
of additional KSU.
ISSUE 4.1 (R5.1) SL1100
Hardware Manual 2-23
