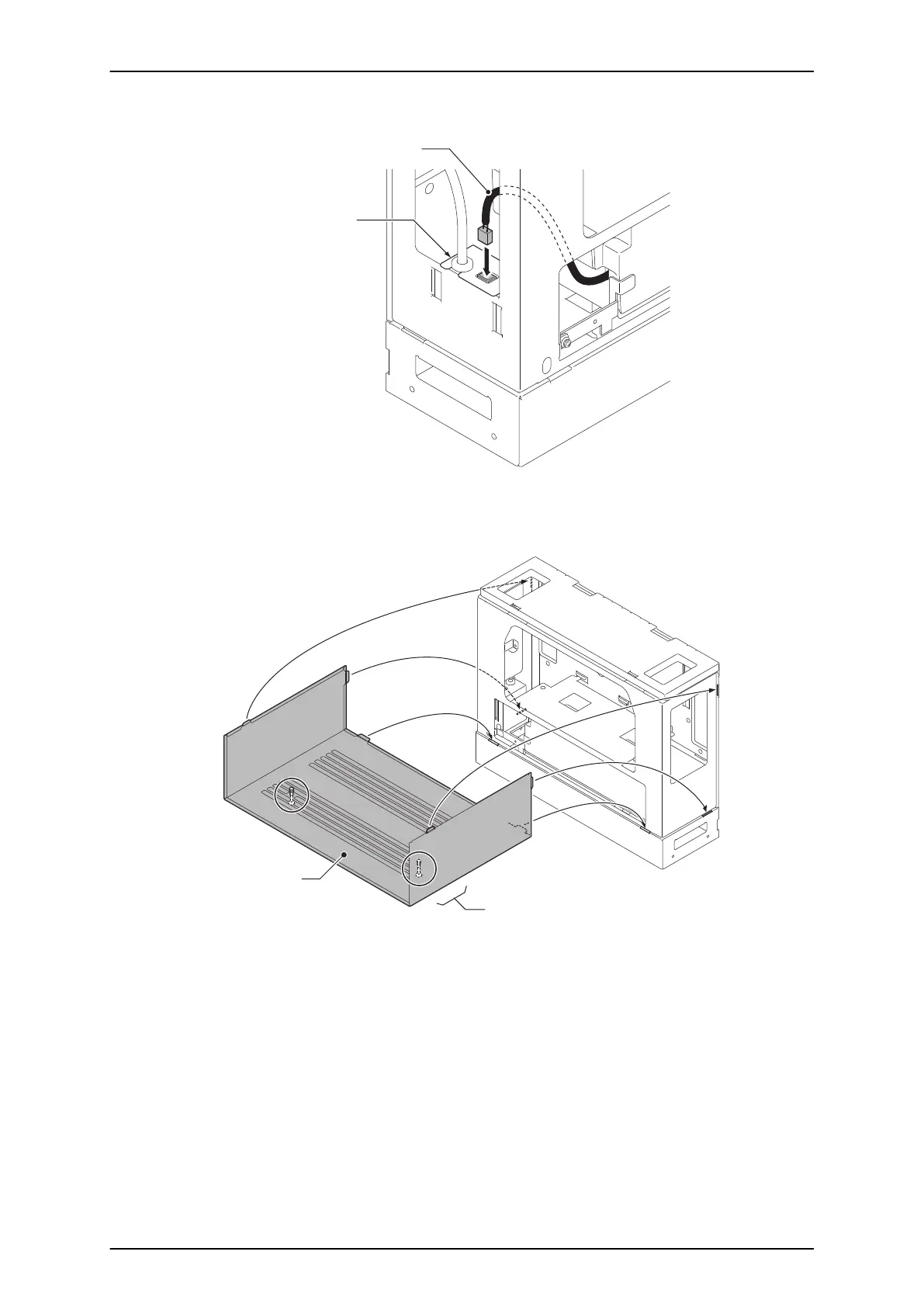

13. Plug the Battery Connection Cable into the Fuse unit.
Fuse unit
Battery Connection
Cable
Figure 2-27 Connecting the Battery Connection Cable
14. Align tabs a to f to holes A to F on Battery Box. Slide the Front cover and tighten the two screws.
b
a
A
B
C
D
E
F
c
d
e
f
Front cover
Two screws
(with stopper)
Figure 2-28 Installation of Front Cover
2.6 Mounting the IP4WW-Battery Box
The IP4WW-Battery Box can be installed on either the floor or wall. One KSU can be mounted on an
IP4WW-Battery Box.
2.6.1 Floor-Mounting the IP4WW-Battery Box
Battery box can be mounted on the floor using the FM/WM Base-F, FM/WM Base-R and WM Support.
(Note: FM = Floor-Mount and WM = Wall-Mount)
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-21
