116

9.2 Set Up

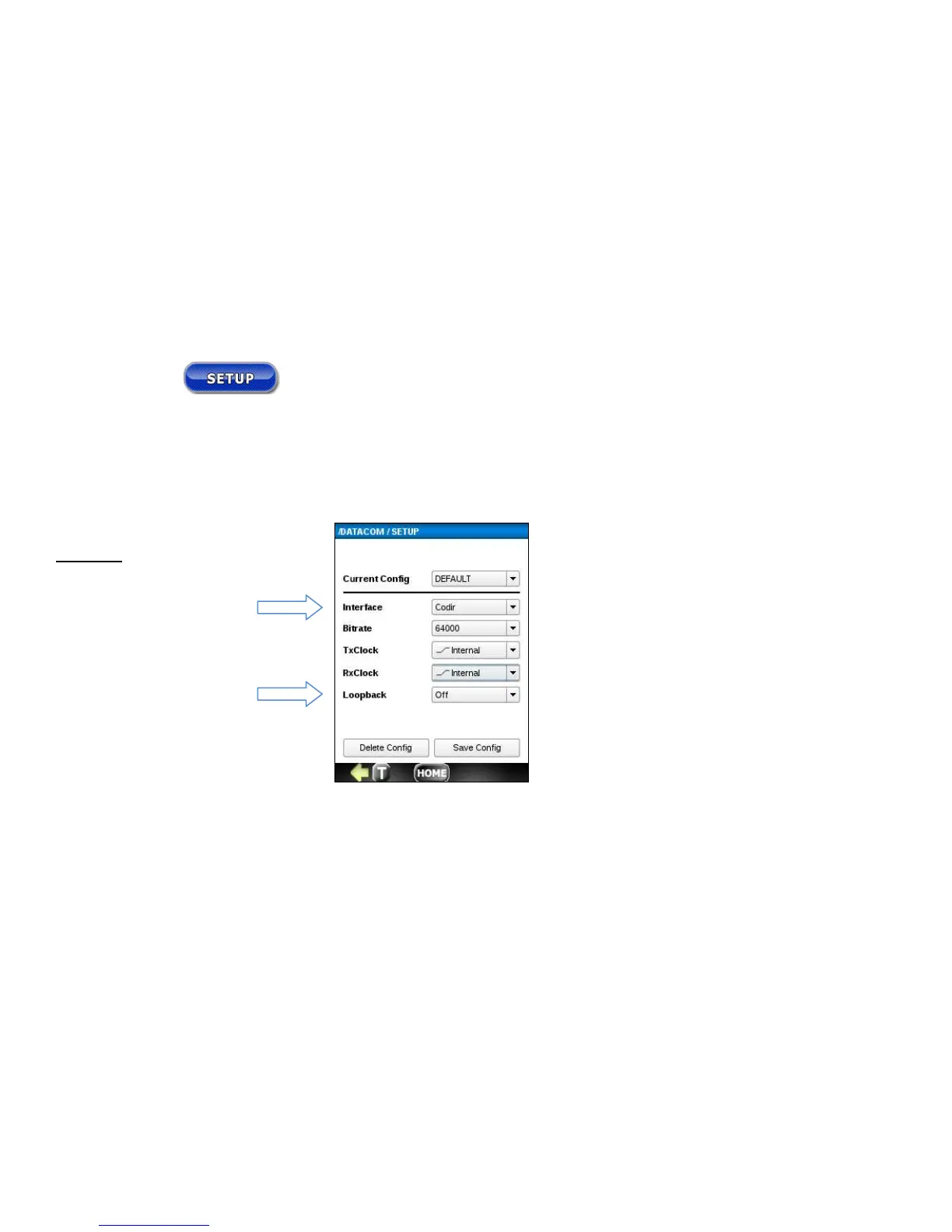

Pull down the Interface drop down and select “Codir” as shown below. Use the Setup menu to configure the Co-Dir

Loopback parameter. All other are fixed.

Loopback

• Off

• Local

• Remote
