234

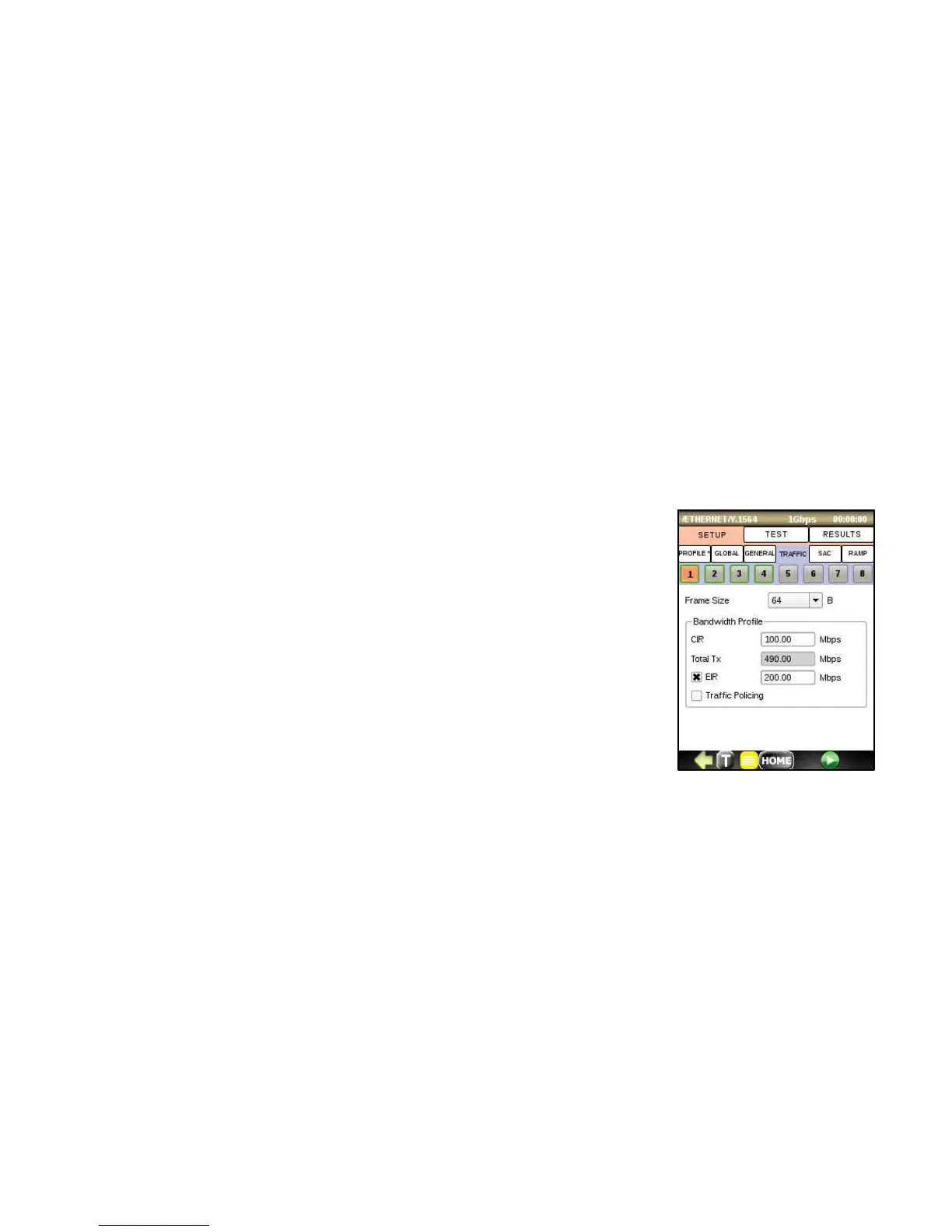

TRAFFIC Tab
Display setup panel that enables user to define frame size and bandwidth profile for each service to be tested.
• Frame Size: Enter a value from 64 to 9600 Byte by clicking on the entry box.
• CIR (Committed Information Rate): Define CIR value
• Total Tx: Indicates the sum transmit rate (CIR) of all enabled services (can’t
exceed 100% of interface Utilized Line Rate)
• EIR (Excess Information Rate): Enables execution of EIR test as a part of
configuration test suite. If enabled, you need to define the EIR value.
• Traffic Policing: Enable execution of the policing test as a part of configuration
test suite. If network under test is not using any traffic administration
algorithm you may want to disable policing test.
