Net research NetProbe 2000 - Propagation Delay Measurement (Pdl)

124
9.4 Propagation Delay Measurement (PDL)
Run the Propagation Delay Measurement application to measure the round trip loopback delay around the Co-Dir
circuit.

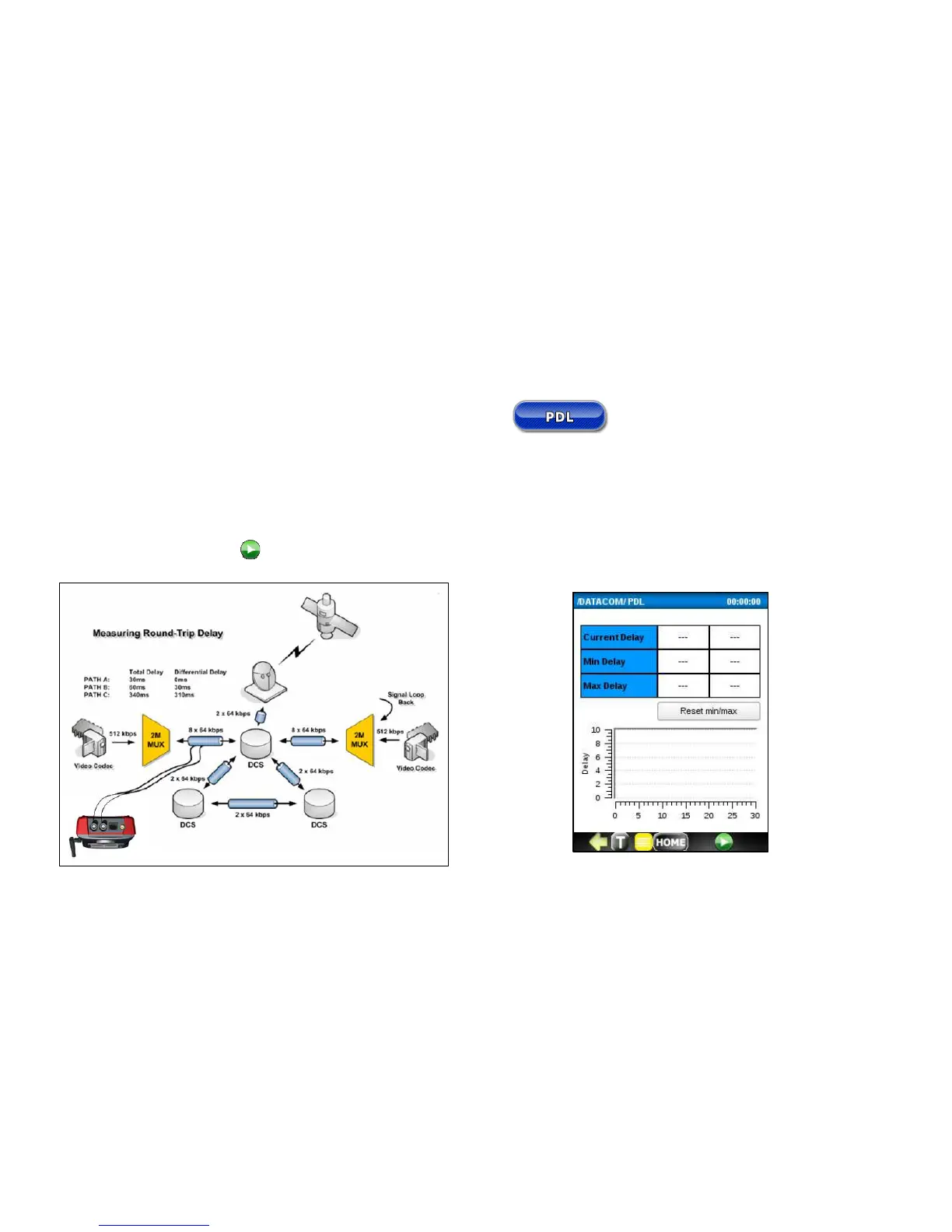

A typical loop around connection for measuring PDL is shown below. After the bantam or datacom adaptor cable
connection is made, press to start the PDL measurement.
