13.5.4 Running a test

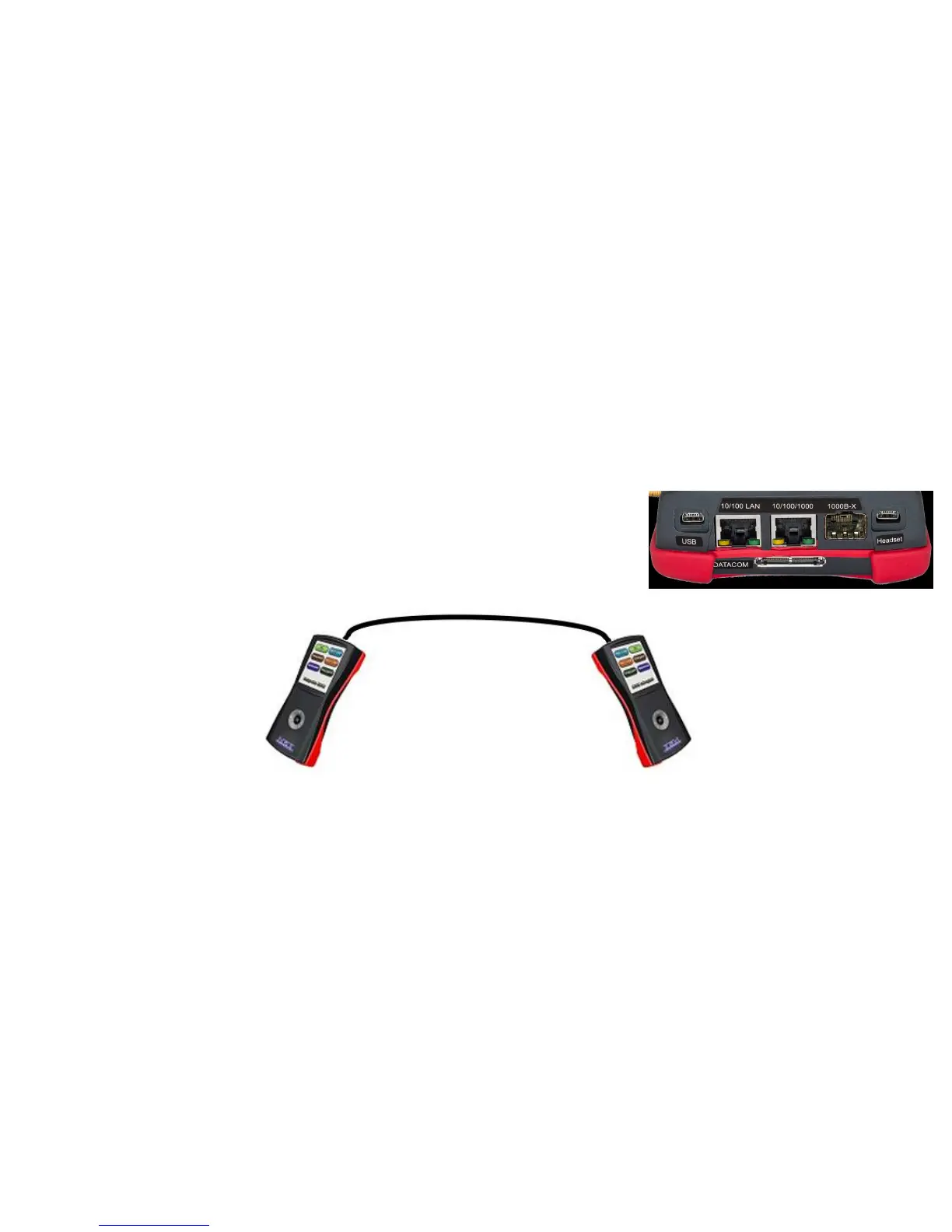

This section will show how to run simple IEEE1588 master/slave emulation test. Connect two NetProbes using Cat 6
Ethernet cable via 10/100/1000 test port (see pictures below). Alternatively, you can use the SFP transceivers and a
fiber patch cable. Go to Ethernet-SETUP and configure the Test Port. Make sure that link is up (see 12.2.2 section).
Next go to IEEE1588 application and follow the steps below:
MASTER
SLAVE
