249
Peer Tab
Peer-to-peer delay measurement works locally, from every node to each of its
neighbors. For each pair of directly connected ports, each end periodically
measures the round-trip network delay between sending a Pdelay_Req message
and receiving in response a Pdelay_Resp message.

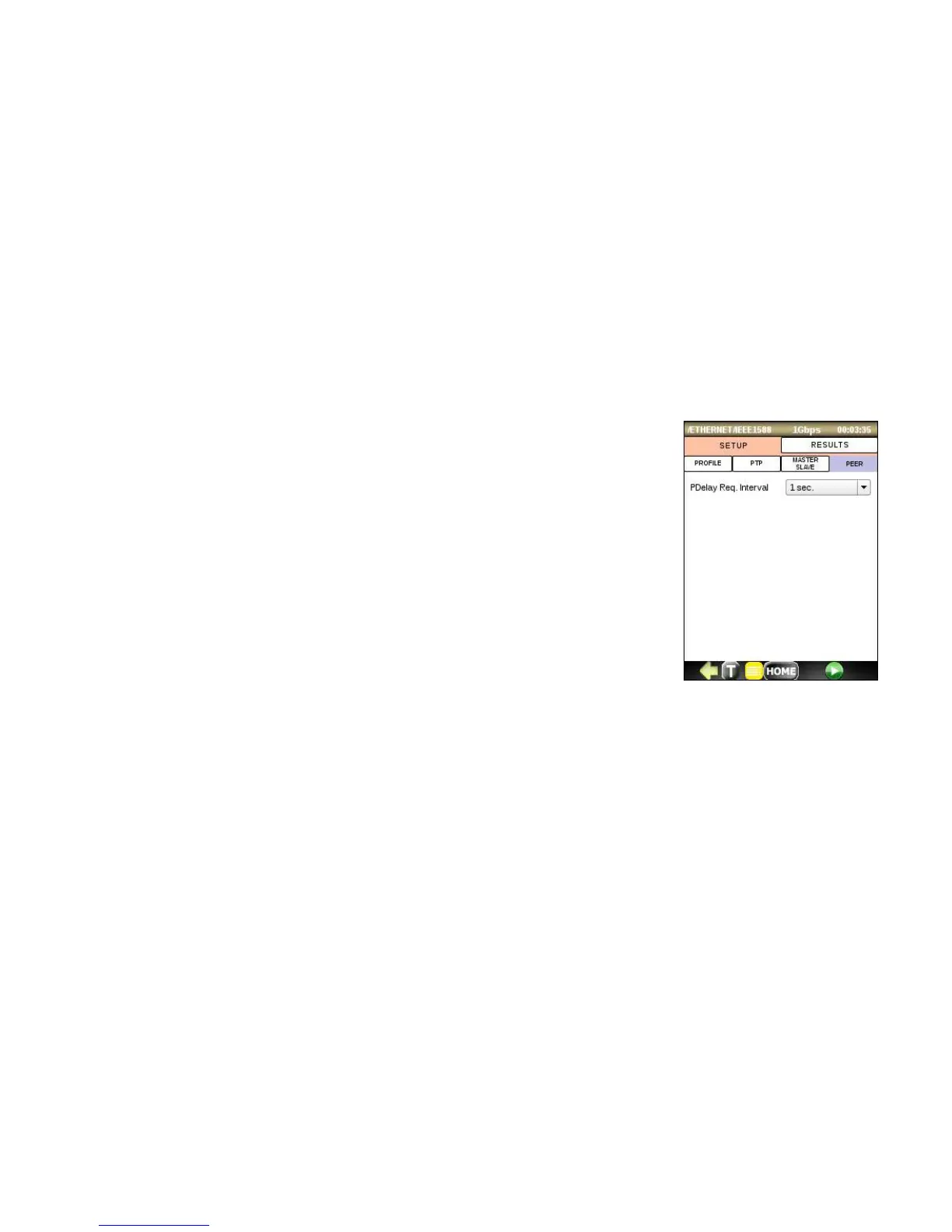

Before running IEEE1588 test with Peer-to-Peer mechanism you may configure time
interval between Pdelay_Req messages. Use the PDelay Req. Interval drop-down
list to select correct value. The default is 1 second.
Note: PDelay Req. Interval setup is used only when Peer-to-Peer delay mechanism is selected.
