127

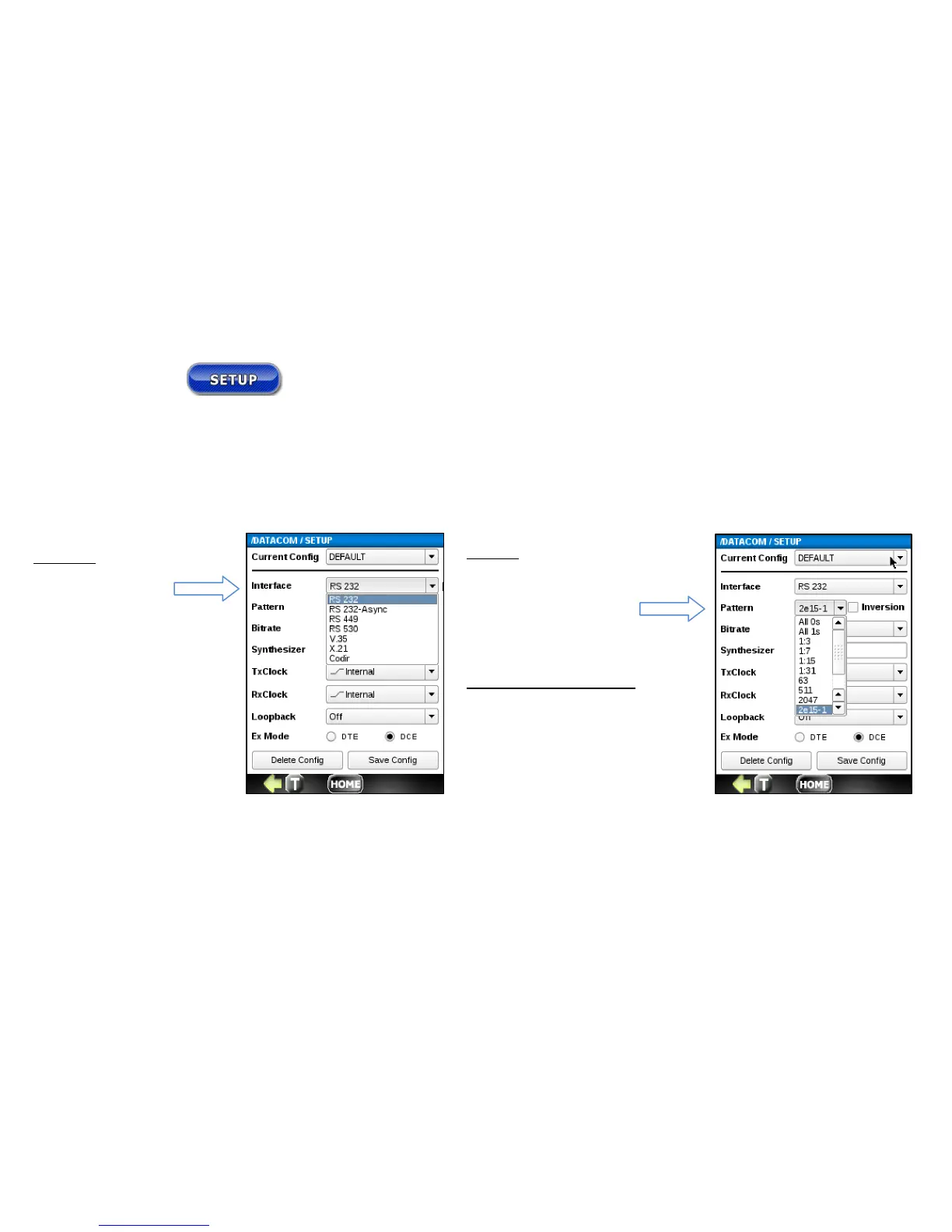

10.1 SETUP
Use the Setup menu to configure the Datacom transmitter and receiver parameters.
Each configuration parameter is described below:
Pattern
OFF, 63, 511, 2047, 2-15-1, 2-
21-1, 2-23-1, QRSS, All 0’s, All
1, 1:3, 1:7, 1:15, 1:31. The
pattern can also be
configured in Setup.
Interface
• RS-232
• RS-232 Async
• RS-449
• RS-530
• V35
• X.21
• Codir
Test Length (not shown)
Unlimited, 30 s, 1 min, 5 min,
10 min, 30 min, 1hr, 3 hr. 6 hr,
12 hr, 1 day, 2 days, 3 days,
user-defined.
