4. DESCRIPTION
4.1 External Interfaces
4.1.1 Top Control Panel

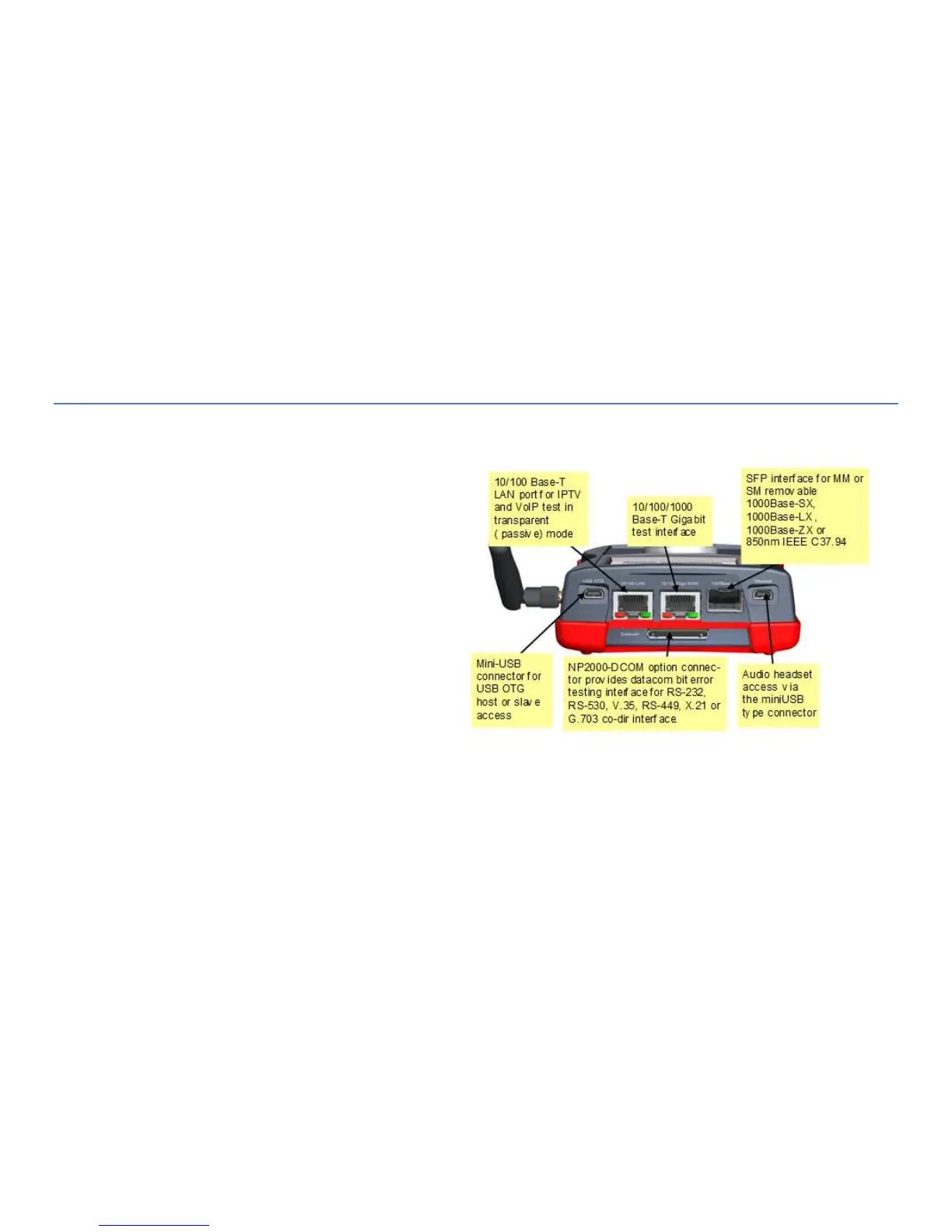

The diagram to the right shows a fully equipped
NetProbe 2000 with optional Gigabit and IEEE
C37.94 ports.
The standard features include the USB port and
Audio micro connector.
The optional datacom connector supports RS-232,
RS-530, RS-449, V-35 and X.21 interfaces with an
adaptor cable. It can also support the optional G.703
Co-dir interface with an adaptor cable.
Both the Datacom (NP2000-DCOM) and G.703 Co-Dir (NP2000-CODIR) options perform Bit Error Test via the DATACOM
connector. This connector acts also as a printer port to a RS-232 thermal printer, model DPU-40.
