Net research NetProbe 2000 - Propagation Delay Measurement (Pdl)

138
10.3 Propagation Delay Measurement (PDL)
Run the Propagation Delay Measurement application to measure the round trip loopback delay around the Datacom
circuit.

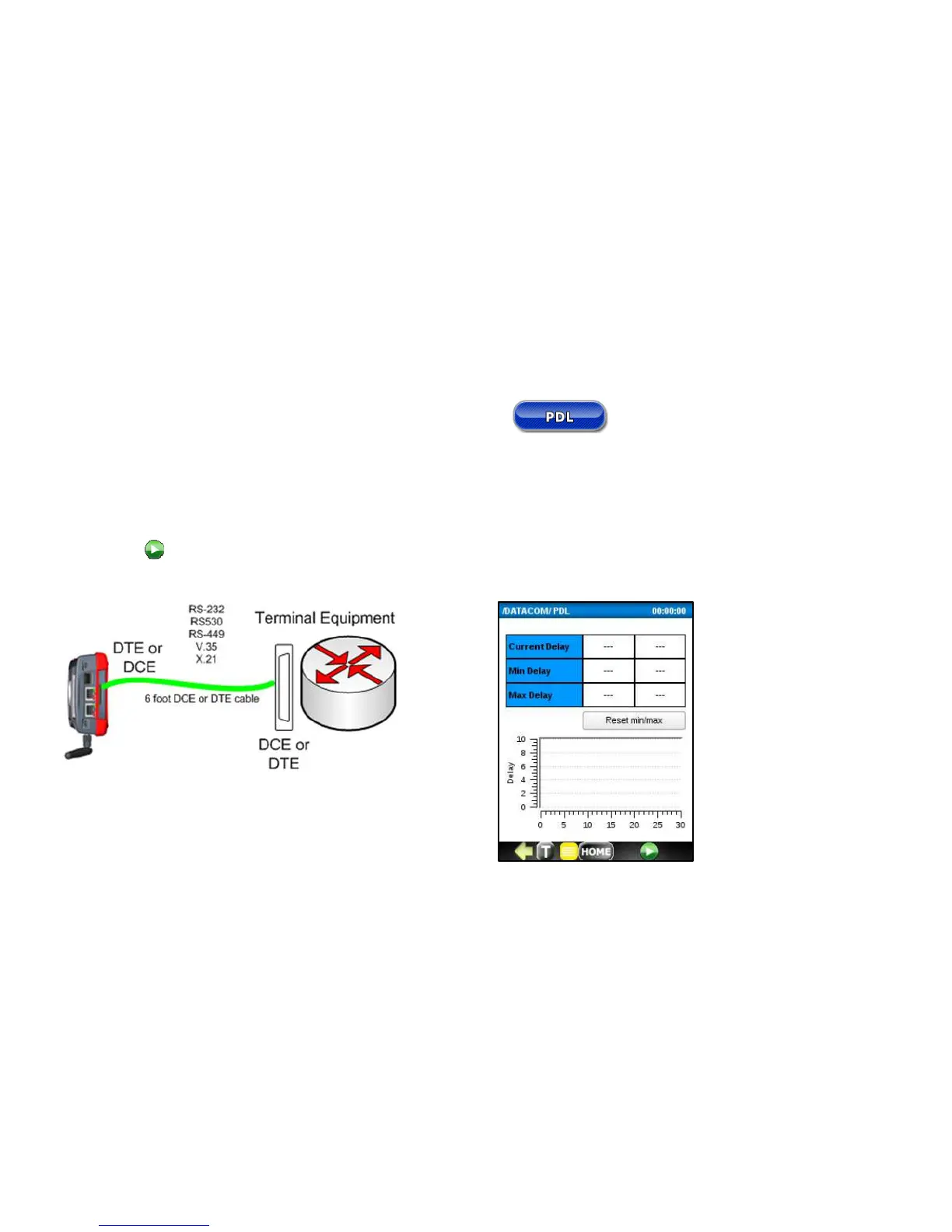

A typical loop around connection for measuring PDL is shown below. After the datacom adaptor cable connection is
made, press to start the PDL measurement.
