Configuration Test Tab

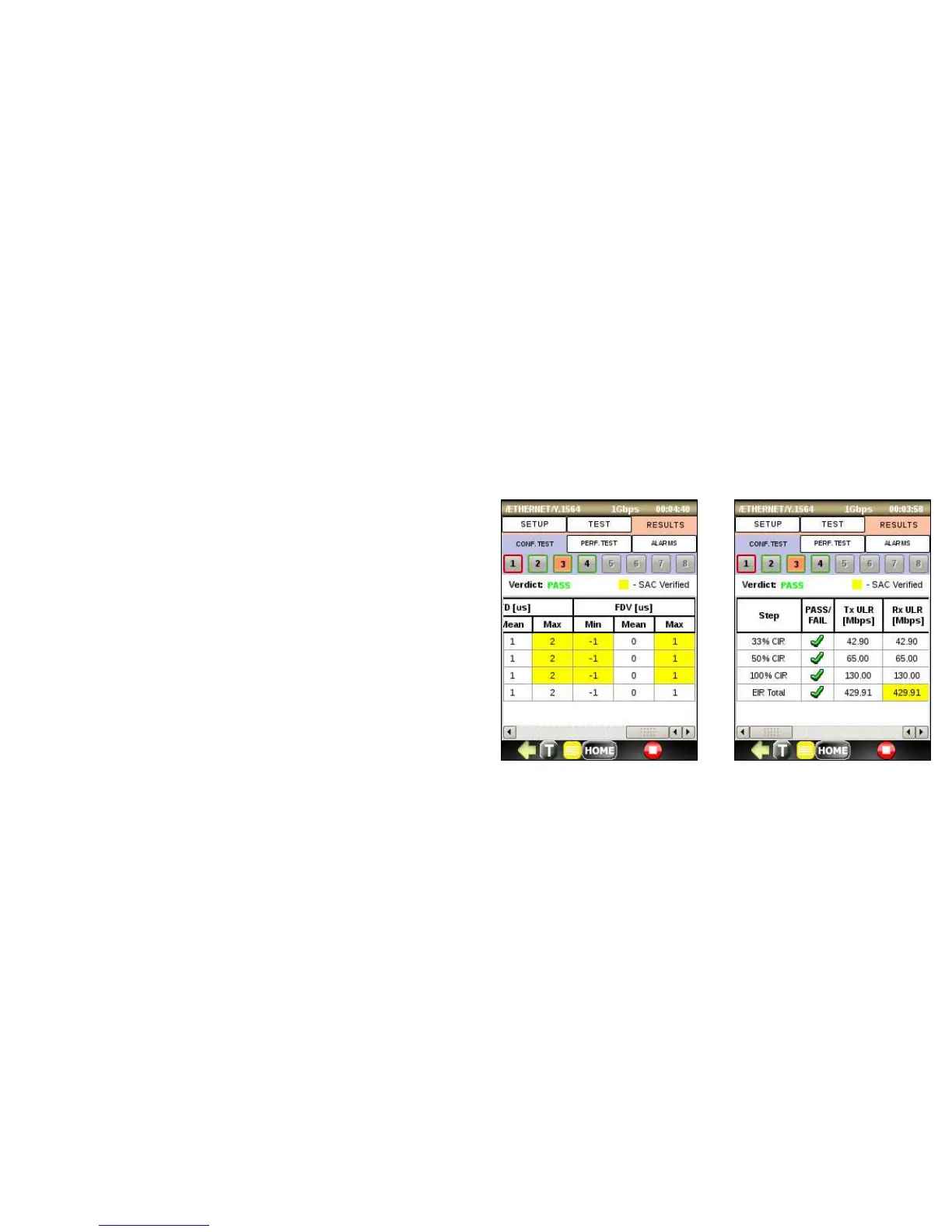

Click on this tab to display the Service Configuration test results:
• Step Verdict
• Tx ULR (Tx Utilization Line Rate)
• Rx ULR (Rx Utilization Line Rate)
• Tx Frame Count
• Rx Frame Count
• Frame Loss Count
• FLR (Frame Loss Rate)
• FTD (Frame Transfer Delay)
• FDV (Frame Delay Variation)
Parameters that are verified against Service Acceptance Criteria (defined on the SAC tab) are displayed with a yellow
backlight. The Service Configuration test passes if all verified parameters for each step are found to be within
acceptable limits. The test is reported as fail if any of test steps are marked as FAIL.
