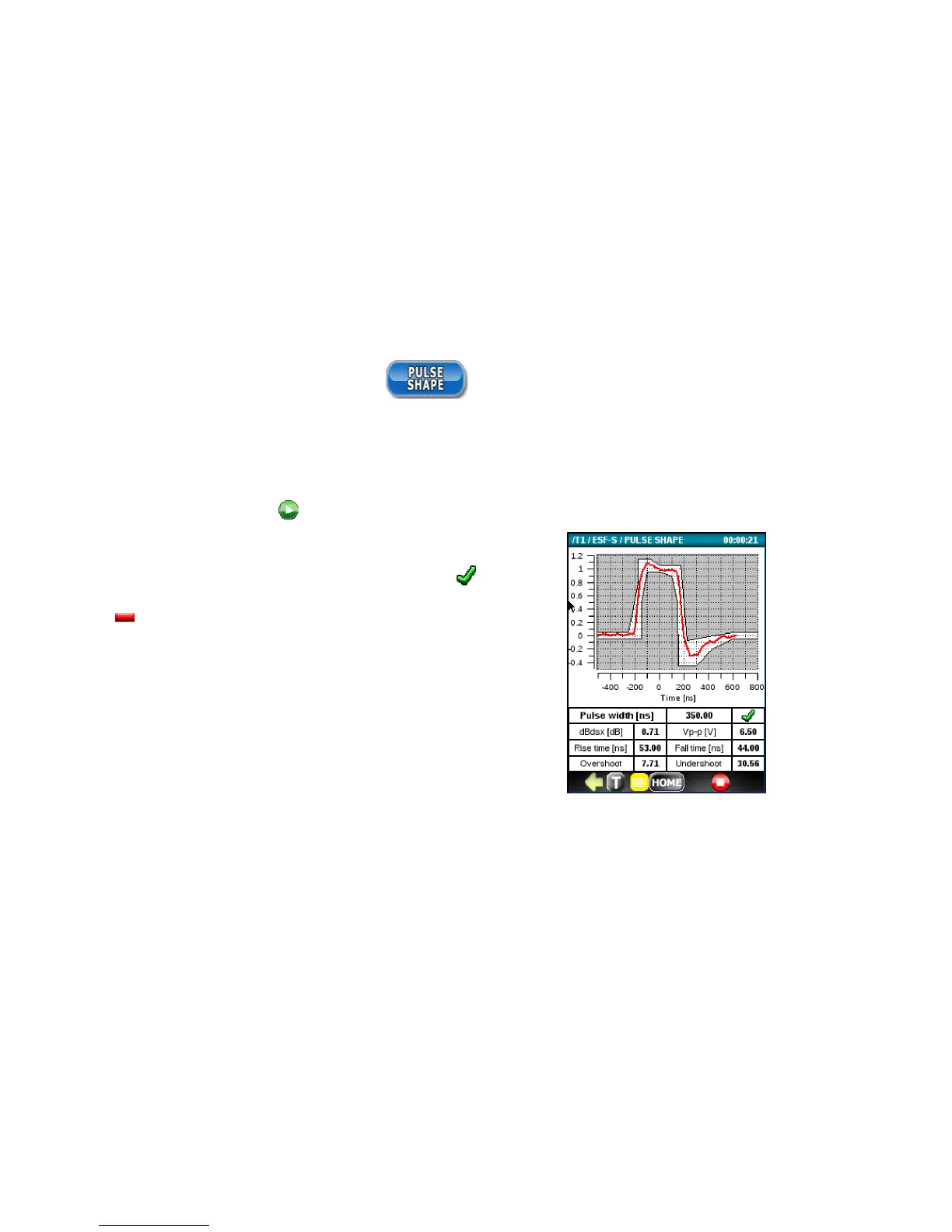

6.6 Pulse Shape Analysis (PSA)
Run the Pulse Shape Analysis (PSA) application to check if the T1 pulse shape complies with ITU-T G.703 specifications.
To plot and analyze the T1 pulse shape, first connect the T1 signal to be tested and select the appropriate Termination
from the T1 Setup menu. Press to start the PSA test.
If the pulse can be normalized it will plot inside the G.703 template. If
the pulse fits 100% inside the template, the test PASSED ( ). If any
part of the plot of the plot falls outside of the template, the test
FAILED ( ).
