36

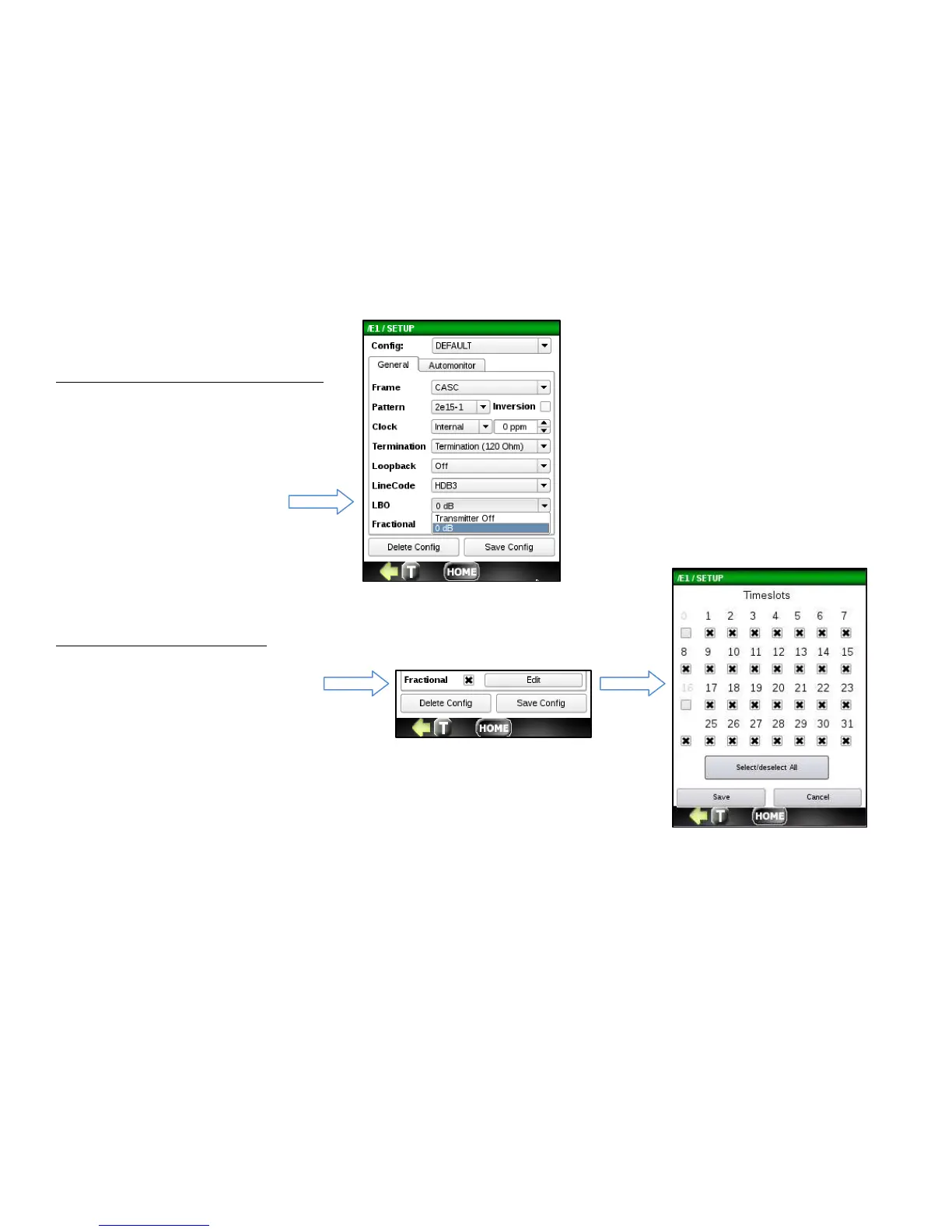

E1 Line Build Out Transmitter TX(LBO)
E1 Transmitter at 0 dB level or OFF
E1 Fractional Submenu Enable
To setup Fractional testing, click on
the checkbox labeled Fraction and press
the Edit button. Next, select desired
Timeslots for nx64kbps fractional E1
testing (where n =1 …15,17..31 for
CAS and n = 1…31 for CCS framing).
