Net research NetProbe 2000 - Page 74

74

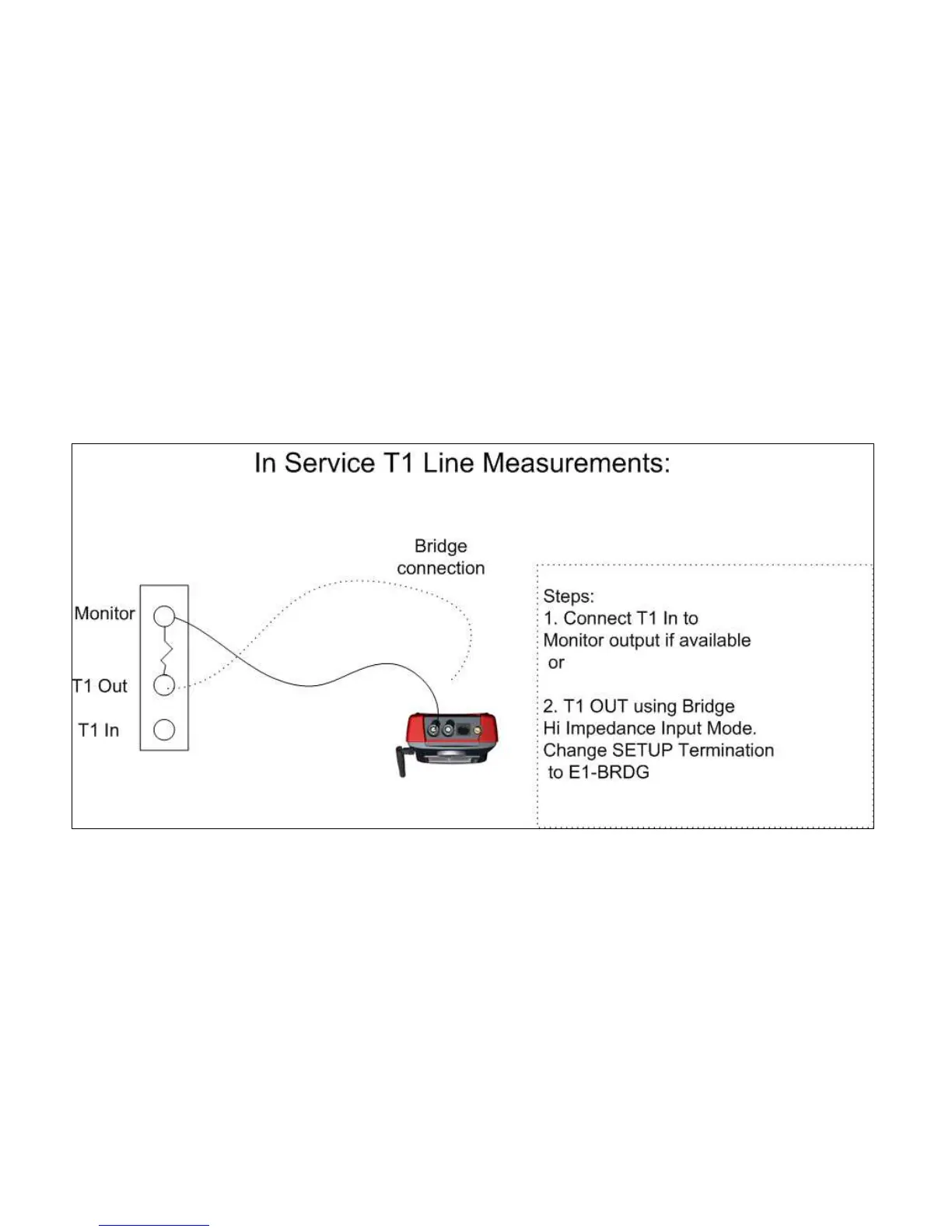

To run the Auto Monitor test, connect the NetProbe 2000 T1 receiver to either a DSX MON jack or E1OUT for BRIDGE if
DSX MON jack is not available. Connect the T1 signal to the appropriate connector (RJ-45, COAX, Bantam) on the
NetProbe. The transmitter Tx is disabled by default.
