NL1901ACV Enhanced Hybrid 4G LTE Gateway – User Guide
UG01063 v. 1.0 December 2018
Access List
When this facility is enabled, only those IP addresses in the list can access local management services on the
device.
This is used to restrict management access from the internet to the specified IP address.

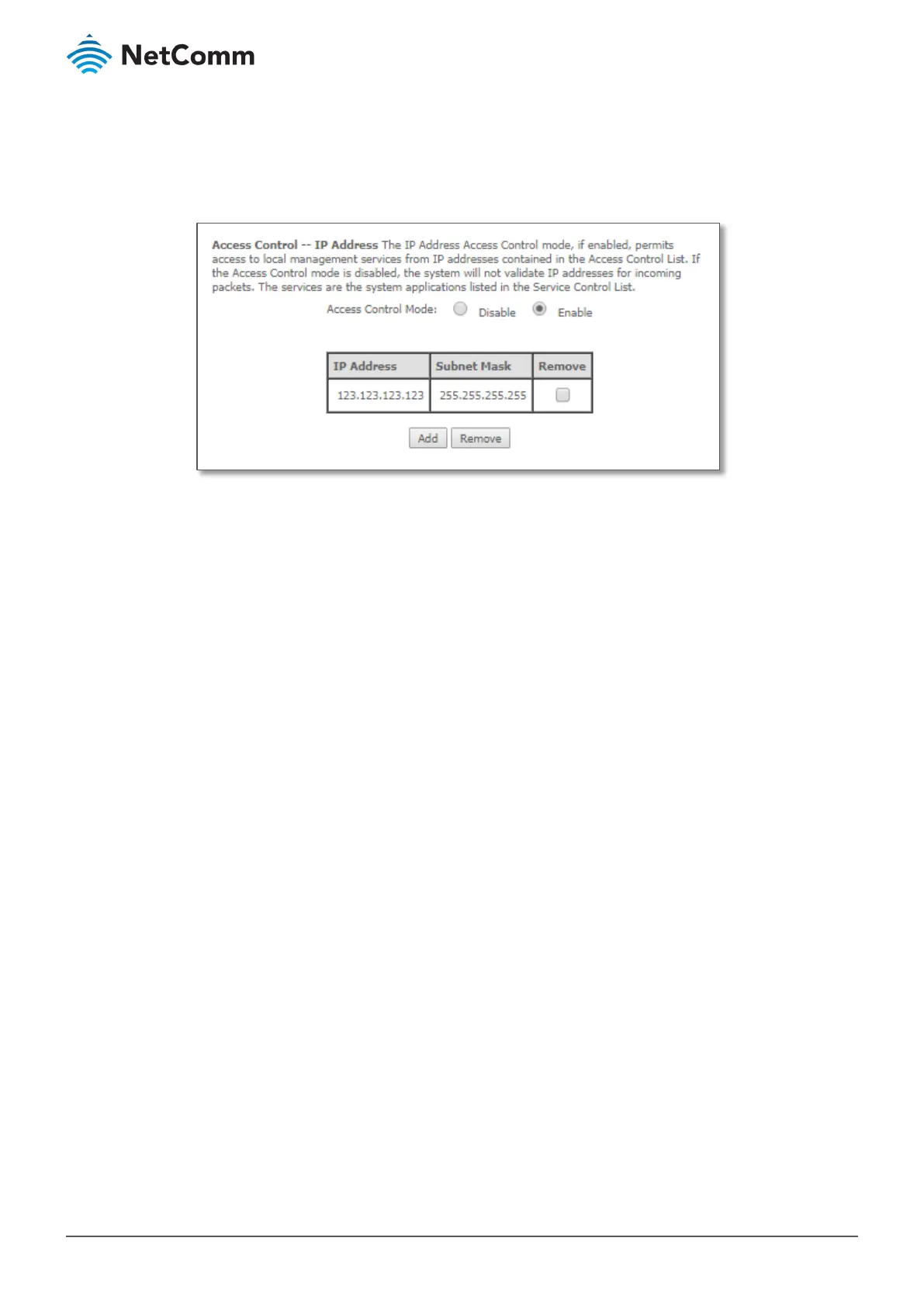

Figure 134 – Access Control – IP Address Access List
To add a device to the list click the Add button and then enter its IP Address and Subnet Mask using CIDR slash
notation:
123.123.123.123/32
To permanently delete an IP Address from the list, select in the Remove column and then click the Remove
button.
