Enter the details into the provided fields. The table below describes each field.
FIELD
DESCRIPTION
Policy Name
A user defined name for the policy route.
Physical LAN Port
The LAN port to be used for the policy.
Source IP
The IP address of the LAN device involved with the policy.
Use Interface
Select the Interface that the policy will employ.
Default Gateway
Enter the gateway address.
Table 28 – Routing – Policy Route settings table
RIP
The Routing Information Protocol (RIP) allows gateways to exchange network topology information. This
information allows the automatic creation and updating of routing tables.
Attention
– RIP cannot be selected for a WAN interface which is NAT enabled, such as PPPoE.
Go to
Basic Setup
and select
Ethernet WAN
, click
Next
and then select
IP over Ethernet (IPoE)
. The RIP option will now be
available.

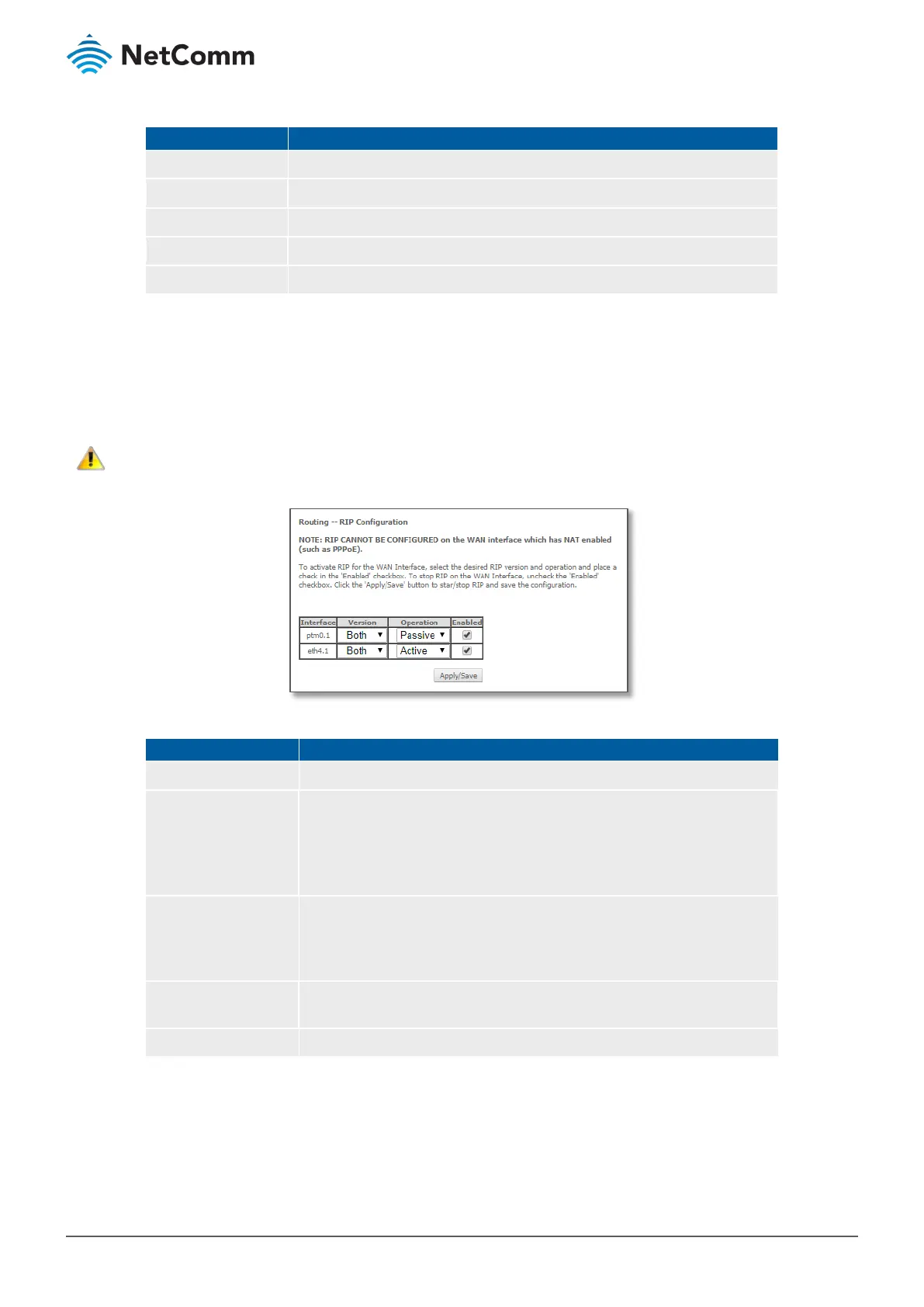

Figure 82 – Routing – RIP list
ITEM
DESCRIPTION
Interface
The network interface that the RIP settings apply to.
Version
1 –
Use
RIPv1
to support classful routing.
2 –
Use
RIPv2
to support subnet information gathering and Classless
Inter-Domain Routing.
Both –
RIP will use both
RIPv1
&
RIPv2
, and will multicast and
broadcast to all adjacent gateways.
Operation
Passive – R
IP will only respond to “
Request Message” queries on the
RIP enabled interface.
Active –
RIP will broadcast and respond to “
Request Message
”
queries on the RIP enabled interface.
Enabled
Select
 Enabled
to activate the RIP routing service on the selected
Interface.
Apply/Save
button Click the
Apply/Save
button to initiate the change.
Table 29 – Routing – RIP settings
