NetComm NL1901ACV User Manual

NL1901ACV Enhanced Hybrid 4G LTE Gateway – User Guide
89 of 146
UG01063 v. 1.0 December 2018
© NetComm Wireless 2018
Wireless – Wireless Bridge (Wireless Distribution Service)
Wireless Bridge allows you to configure the gateway’s access point as a Wireless Distribution Service.

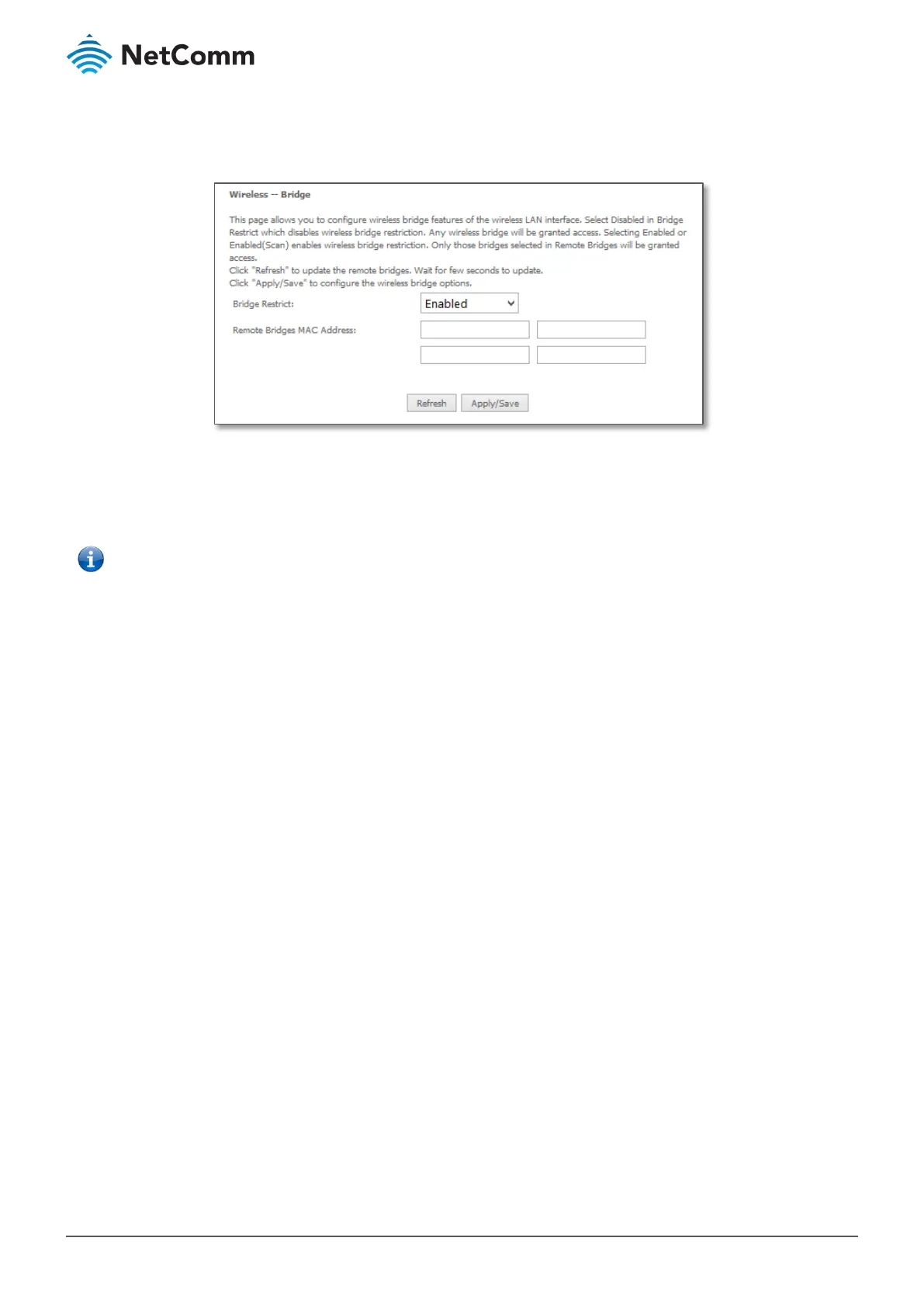

Figure 108 – Wireless Bridge page
Select the mode for the Wireless Access Point built into the NL1901ACV. You can specify which wireless networks
will be allowed to connect to the NL1901ACV by using the
Bridge Restrict option and then entering the applicable
MAC Addresses of the other wireless access points.
Note
– WPA/WPA2 encryption may not be compatible with other vendors, when operating in Wireless Bridge (WDS) mode.
Click Apply/Save to save the new wireless bridge configuration settings.

NetComm NL1901ACV Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1900 Mbit/s
Product type	Tabletop router
Product color	Black
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
4G standard	LTE-TDD & LTE-FDD
4G LTE category	8
Mobile network generation	4G
Output current	2 A
Output voltage	12 V
Power source type	AC
Memory card slot(s)	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Weight and Dimensions

Depth	75 mm
Width	230 mm
Height	200 mm
Weight	562 g
